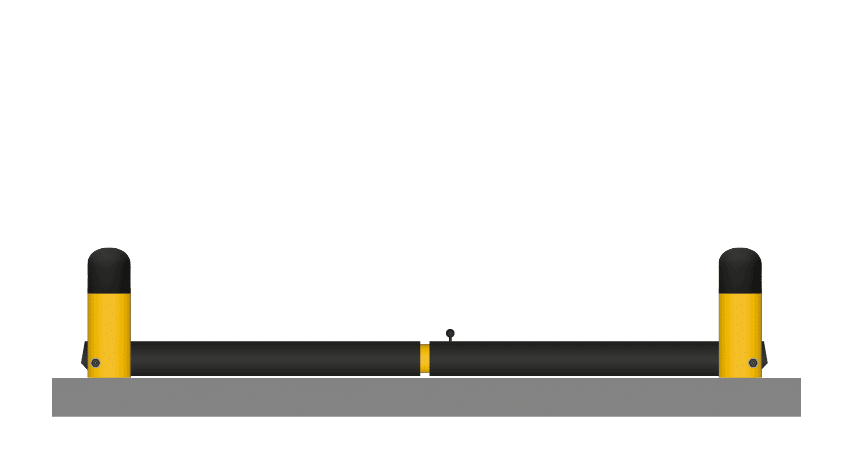

Dock Lifting Barriers
Dock Lifting Barriers are an advanced safety solution specially designed to protect loading docks while allowing quick access passage when needed. This unique combination of protection and flexibility makes this product ideal for demanding logistics operations.
Main benefits:
- Robust protection – Effectively absorbs impacts, especially in the event of vehicle collisions.

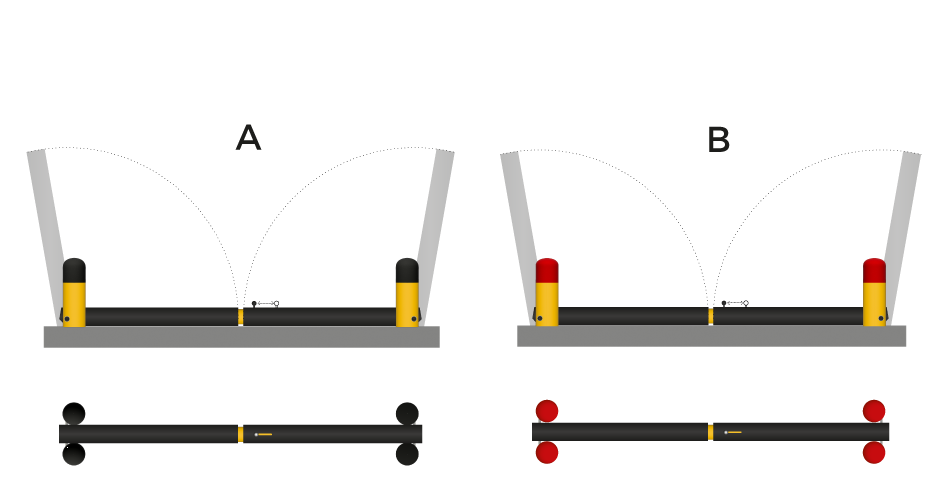

- Lifting mechanism – Equipped with a manually operated lifting system for quick and easy control.
- Flexible use – Allows quick lifting of the barrier to permit vehicle or handling equipment passage.
- High impact resistance – Certified resistance to strong impacts while maintaining functionality.
- Dock protection – Specifically designed for critical areas of loading docks.
- Easy operation – Manual mechanism enables fast handling without electrical power.
- Durable construction – Made from high-tech materials resistant to long-term mechanical stress.
This barrier is ideal for locations where permanent protection needs to be combined with occasional passage, such as loading docks with variable traffic.
Technical Specs
Download Technical Specs in PDF
Bollards
| Diameter D - mm |
Height H - mm |
Resistance Joules |
Anchoring Pullout kN |
Total Floor Space mm |
IP Grade | Flame Extinguishing Rate |
|---|---|---|---|---|---|---|
| 120 | 450 | 16 850 | 580 | 317 | 59 | UL94: HB |
| 140 | 450 | 23 950 | 580 | 265 | 59 | UL94: HB |
Lifting Guards
| Diameter D - mm |
Length L - mm |
Resistance Joules |
IP Grade | Flame Extinguishing Rate |
|---|---|---|---|---|
| 125 | 2000-6000 | 23 250 | 59 | UL94: HB |
Customized solution and colours upon request
Impact Energy Calculator
(please fill in the details for calculation)
Impact energy result - Joules
Precisely What You Need
Call our Safety Consultant and receive a free, no-commitment Safety Assessment tailored to your needs.
Tel.: +39 347 46 74 056 / E-mail: info@bambarrier.com
Technology
FLEXAFE™
Cutting-Edge Polymer material, designed specifically to absorb high-level impacts in a very small space. It is food-safe, doesn't break or flake, and 100% recyclable.
FOOD SAFE
Resistance to Ultra-Violate Light DIN-EN-ISO 8777-8 Blue Scale
100% recyclable
Temperature Range -40° to +50°
ROOTLOCK®
World‘s most advanced and safe Anchorage System. It helps the floor to absorb violent and repeat vehicles impacts without damaging the floor.
Cutting-edge Anchorage System Design
Anti-Shrinkage Cement
Applications
Compliant Crash Testing
We test our products in compliance with the industry‘s World-class standards: PAS13:2017 and UNI 11886.
- We measure barriers resistance in „Joules“ according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h) - We make sure test only on real floor: armed concrete; we don‘t test on metal platforms.
- We make sure vehicle impact takes place at the worst-scenario angle: 90°.
Finally, Bambarrier product is certified compliant when:
- It stops the crashing vehicle safely without breaking itself and without breaking the floor.
- It can be hit repeatedly without getting loose and without breaking the floor.
- When after an impact, it occupies a very small space on the floor.
Crash tests - Bambarrier Dock Lifting Barriers
Crash tests - Bambarrier Impact Safety Bollards
Certified Anchorage System Rootlock® M30
