EM-FLEX® Magnetic Gapseals
Absolutely the best draught and pest stopper for swing doors, industrial doors and docklevellers in trady and indrusty. They consist of a hygienic, waterproof special fabric with an extremely robust and smooth surface. On one or two long sides, the special fabric is provided with magnetic tapes for easy assembly.
No drilling, no rivets, no screws - very easy assembly

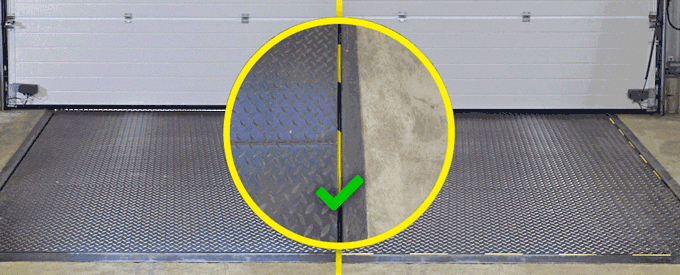

Applications for docklevellers and loading ramps
FotogalerieApplications for doors and overhead door
Benefits:
Hygiene: stops dirt, vermin and rodents
- working environment is significantly cleaner and healthier
Very good quality/price ratio
Quick return on investment
Safety: colour coding meets international standards
Easy assembly: for all types docklevellers and loading ramps
Good Protection
Bad Protection
Installation
Advantages compared to a rubber or brush seal
Easy to clean.
Easy to clean.
Easy to clean with a water jet. Because the EM-FLEX seal is waterproof, the cleaning water does not reach areas where it is undesirable.
Just economical.
Just economical.
At purchase, you save up to 50% compared to conventional rubber or brush seals. And thanks to the long service life of the robust EM-FLEX seals, you can reduce subsequent costs by up to 85%. You also reduce your energy costs.
Just flexible.
Just flexible.
With EM-FLEX seals, you can easily seal gaps under sliding doors from 4 to 40 mm. Despite its robustness, the material is flexible and adapts perfectly to uneven floors.
Just sealed.
Just sealed.
EM-FLEX reduces draft by 94%! It not only keeps out the cold and wind but also prevents the ingress of dust and soot particles. Read the results of the blower door tests here.
Simply by magnet.
Simply by magnet.
The EM-FLEX seal attaches magnetically to almost every door. Don't have a metal door? No problem! The EM-FLEX seal also offers a solution here.
Simply more hygienic.
Simply more hygienic.
Special sealing systems of EM-FLEX bottom seals stop rodents and vermin. Especially for companies in the food industry, retail, bakeries and public institutions, a conventional brush seal is not sufficient.
Enjoy these benefits with all EM-FLEX seals!
Compared parameters | EM-FLEX | Brush seal | Rubber seal |
| Energy saving | |||
| Waste water tight | limited | ||
| High hygiene safety | |||
| Anti infection | |||
| Draft reduction | up to 94 % | max 40 % | max 40 % |
| Vermin stop | |||
| Barrier against mice | |||
| Available in door colour | |||
| Security markings | |||
| Gap opening | from 4 to 55 mm | up to 25 mm | up to 25 mm |
| Low built-in space | from 2 to 3 mm | at least 5mm | at least 5mm |
| Limited maintanence | |||
| Long lifetime | |||
| Easy and fast installation | |||
| Custom logo |
Heat image with and without Em-Flex gap seals for industry gates.
Heat image with and without EM-FLEX gap seal for doors.
Heat image with and without EM-FLEX gap seal for loading ramps.
Summary:
1 unsealed ramp 1 m2 = open window
2 unsealed ramps 2 m2 = large window fully open
Docklevellers and loading ramps
EM-FLEX seals are the only durable option to seal the side and rear openings of dock levellers and lifting platforms. They consist of a hygienic, waterproof special fabric with an extremely robust and smooth surface.
Temperature range: -20 °C to +70 °C
Surface: acrylic
Tensile strength: 2600/2400 (N/5 cm) DIN 53354
Burst resistance: 250/250 (N) DIN 53386
Sealing space: from 4 mm to 120 mm
Colour: black/yellow
Flexible seal includes a permanent magnet for easy installation.
Thickness: approx. 1.0 mm
Material property: double-sided magnetic
Durability: long-term minimum 5 years
Easy to clean.
Just economical.
Just flexible.
Just sealed.
Simply by magnet.
Simply more hygienic.
Doors, Overhead door
EM-FLEX seals are the only durable option to seal the side and rear openings of dock levellers and lifting platforms. They consist of a hygienic, waterproof special fabric with an extremely robust and smooth surface.
Temperature range: -20 °C to +70 °C
Surface: acrylic
Tensile strength: 2600/2400 (N/5 cm) DIN 53354
Burst resistance: 250/250 (N) DIN 53386
Sealing space: from 4 mm to 120 mm
Colour: black/yellow
Flexible seal includes a permanent magnet for easy installation.
Thickness: approx. 1.0 mm
Material property: double-sided magnetic
Durability: long-term minimum 5 years
Easy to clean.
Just economical.
Just flexible.
Just sealed.
Simply by magnet.
Simply more hygienic.
