Protections of racking systems

Protections of racking systems provide a robust solution for securing the end sections of rack aisles against impacts from warehouse equipment. This specialized safety feature is designed specifically for high-level protection of the most at-risk areas in the warehouse.

Main Benefits:

Maximum safety – Certified impact barrier safely stops a crashed vehicle without breaking or damaging the floor
Repeated durability – Can withstand multiple subsequent impacts without loosening or damaging the floor
Space-saving – Occupies very little floor space after impact, not obstructing operations
Professional installation – Impact posts ensure stable and reliable mounting

This product is ideal for protecting rack ends in areas with intensive forklift traffic. It protects not only expensive rack structures but primarily prevents dangerous rack collapses and employee hazards. Investing in this protection significantly reduces the risk of accidents and related costs.

Protections of racking systems protect

Technical Specs

Download Technical Specs in PDF

Bollards

Diameter D - mm	Height H - mm	Resistance Joules	Anchoring Pullout kN	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
100	450	10 500	580	343	59	UL94: HB
120	450	16 850	580	317	59	UL94: HB
140	450	23 950	580	265	59	UL94: HB

Rails

Diameter D - mm	Height H - mm	Length L - mm	Resistance Joules	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
55	110	1000-2000-3000	7 930	250	59	UL94: HB

Guards

Diameter D - mm	Height H - mm	Length L - mm	Resistance Joules	Anchoring Pullout kN	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
70	130	500-1000-1500-2000	9 369	190	94	59	UL94: HB
100	160	500-1000-1500-2000	19 360	190	140	59	UL94: HB
120	180	500-1000-1500-2000	33 950	190	183	59	UL94: HB
70/70	450	500-1000-1500-2000	9 369	190	94	59	UL94: HB
100/70	450	500-1000-1500-2000	19 360	190	140	59	UL94: HB
120/70	450	500-1000-1500-2000	33 950	190	183	59	UL94: HB

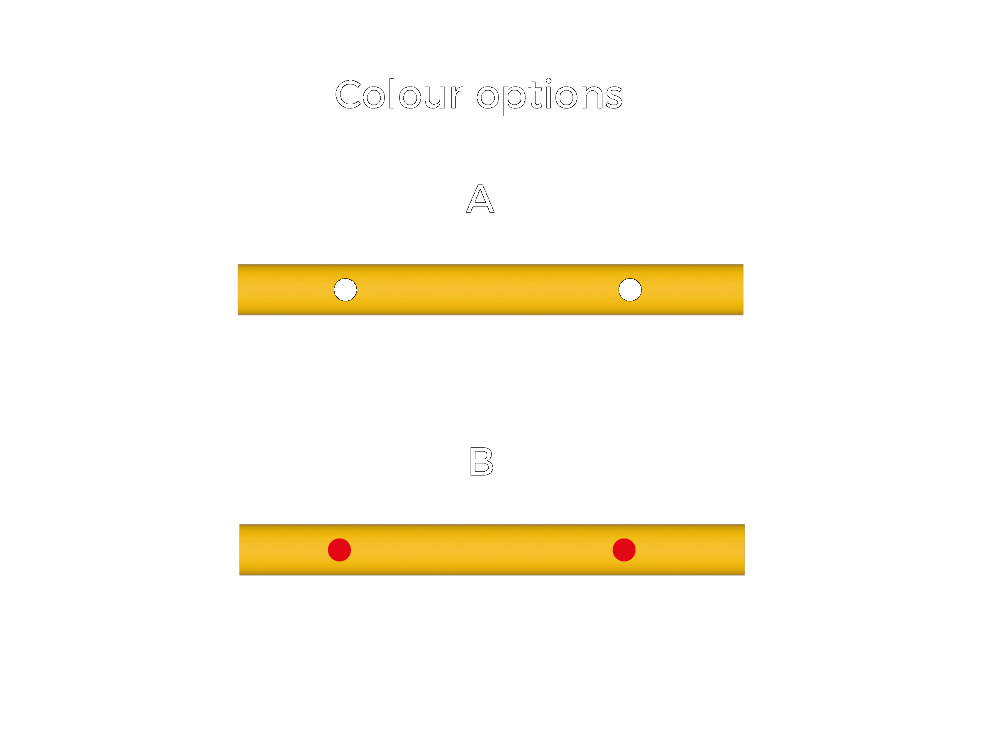

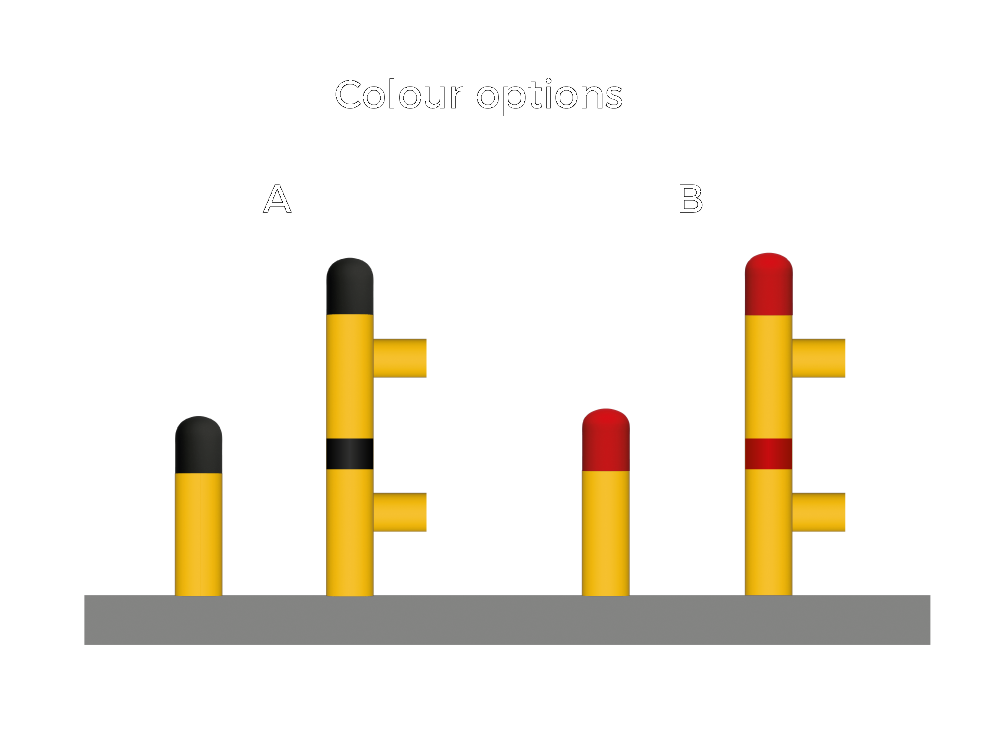

Customized solution and colours upon request

Impact Safety Bollards

Impact Safety Guards

Double Impact Safety Guardrails

Impact Energy Calculator

Mass

Speed

Angle

(please fill in the details for calculation)

Impact energy result - Joules

10 000

12 500

20 000

25 000

30 000

37 500

40 000

50 000

..... Joules

Precisely What You Need

Call our Safety Consultant and receive a free, no-commitment Safety Assessment tailored to your needs.

Tel.: +39 347 46 74 056 / E-mail: info@bambarrier.com

Contact form

Technology

FLEXAFE™

Cutting-Edge Polymer material, designed specifically to absorb high-level impacts in a very small space. It is food-safe, doesn't break or flake, and 100% recyclable.

FOOD SAFE

Resistance to Ultra-Violate Light DIN-EN-ISO 8777-8 Blue Scale

100% recyclable

Temperature Range -40° to +50°

Why is it beneficial to use FLEXAFE?

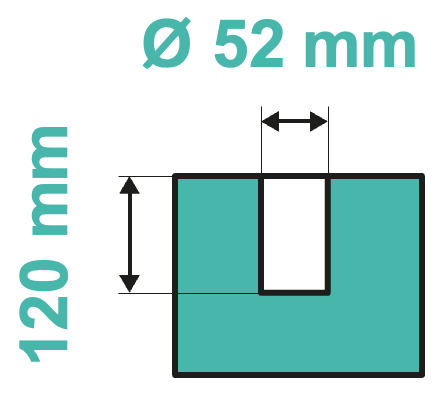

ROOTLOCK®

World‘s most advanced and safe Anchorage System. It helps the floor to absorb violent and repeat vehicles impacts without damaging the floor.

Cutting-edge Anchorage System Design

Anti-Shrinkage Cement

What makes ROOTLOCK® special?

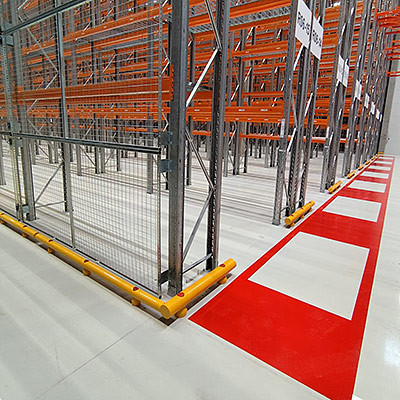

Applications

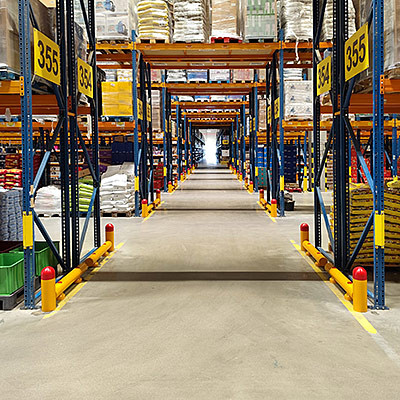

Rack Front Protection

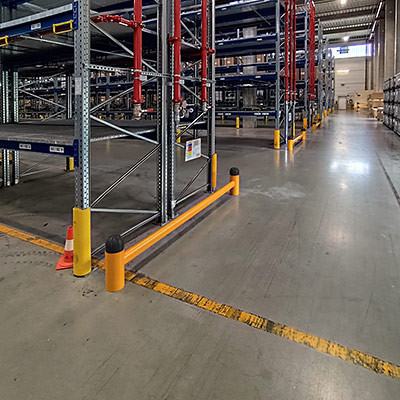

Rack Passage Protection

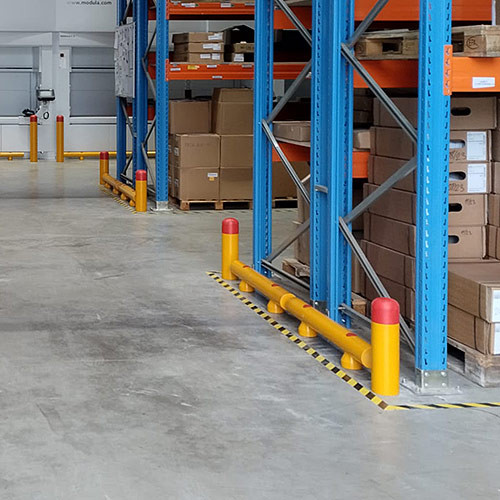

Protection of Rack Assemblies

Rack Protection

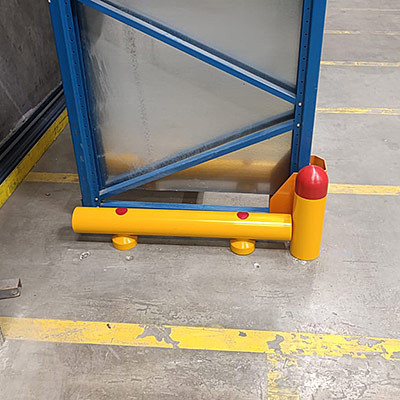

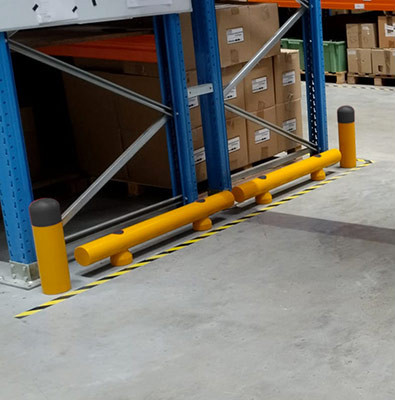

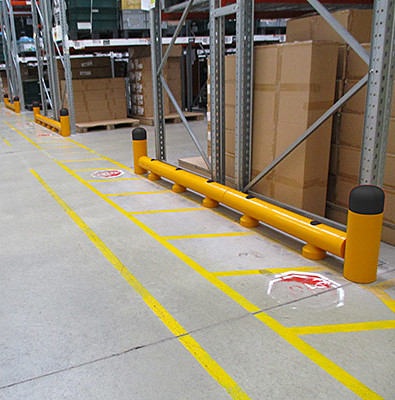

Good Protection

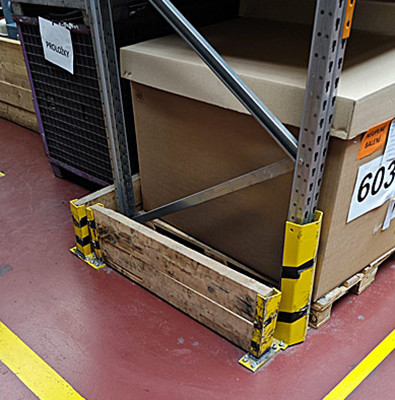

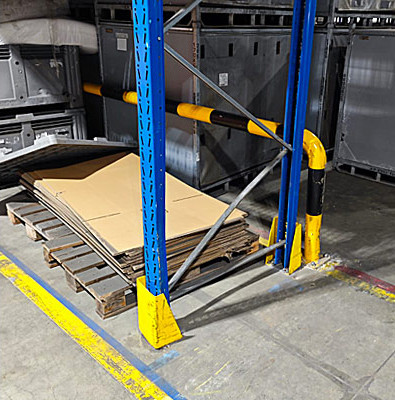

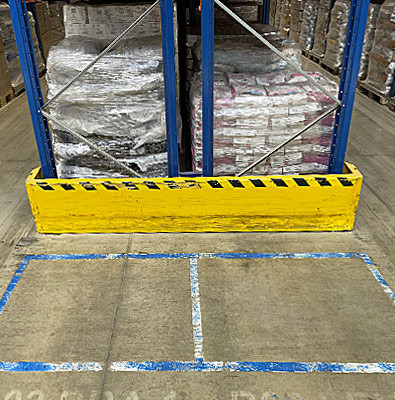

Bad Protection

Frequently Asked Questions

Compliant Crash Testing

We test our products in compliance with the industry‘s World-class standards: PAS13:2017 and UNI 11886.

We measure barriers resistance in „Joules“ according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h)
We make sure test only on real floor: armed concrete; we don‘t test on metal platforms.
We make sure vehicle impact takes place at the worst-scenario angle: 90°.

Finally, Bambarrier product is certified compliant when:

It stops the crashing vehicle safely without breaking itself and without breaking the floor.
It can be hit repeatedly without getting loose and without breaking the floor.
When after an impact, it occupies a very small space on the floor.
