Height Restriction Barriers

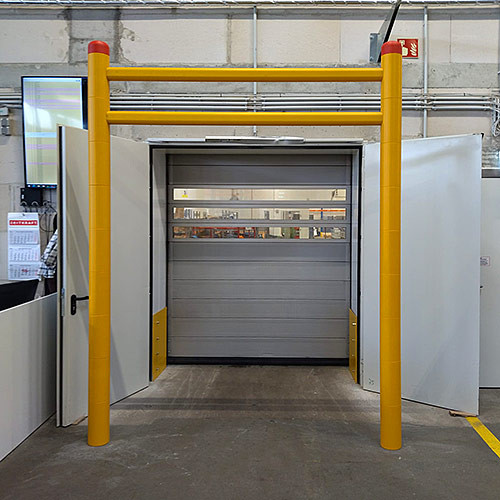

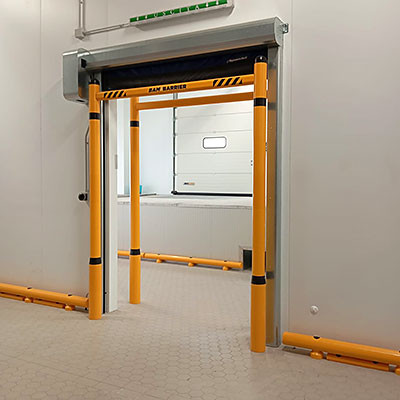

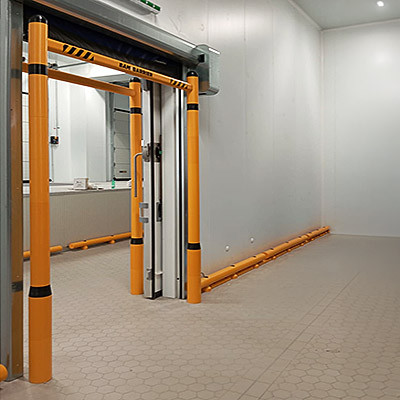

Height Restriction Barriers are a specialized safety solution designed to protect overhead equipment and installations at height. This unique system safeguards critical infrastructure that would otherwise be exposed to damage risks during handling with forklifts or other elevated machinery.
Main Advantages:
- Protection of Overhead Equipment – Protects industrial doors, HVAC ducts, and other technical installations at height
- Special Applications – Ideal for protecting fire sprinklers and other safety systems
- Prevention of Costly Accidents – Prevents damage to expensive technical devices and systems
- Operational Safety – Ensures operational continuity by protecting critical infrastructure
- Durable Construction – Made from high-tech materials resistant to impacts and weather conditions
- Easy Installation – Adaptable to various types of overhead installations
This product is essential for warehouses and production halls with overhead technical installations, representing an economical investment in protecting valuable equipment.
Technical Specs
Download Technical Specs in PDF
Bollards
| Diameter D1/D2 - mm |
Height H - mm |
Resistance Joules |
Anchoring Pullout kN |
Total Floor Space mm |
IP Grade | Flame Extinguishing Rate |
|---|---|---|---|---|---|---|
| 140/120 | 1600-4080 | 23950 | 60 | 1 370 | 59 | UL94: HB |

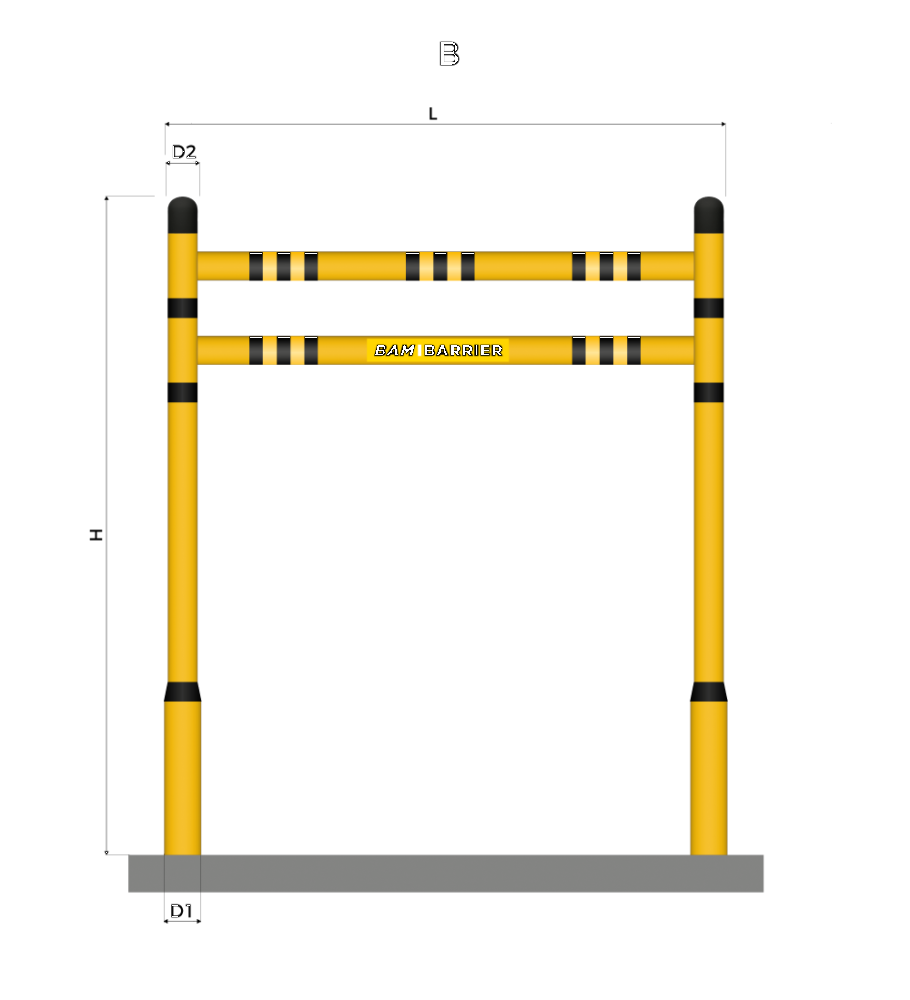

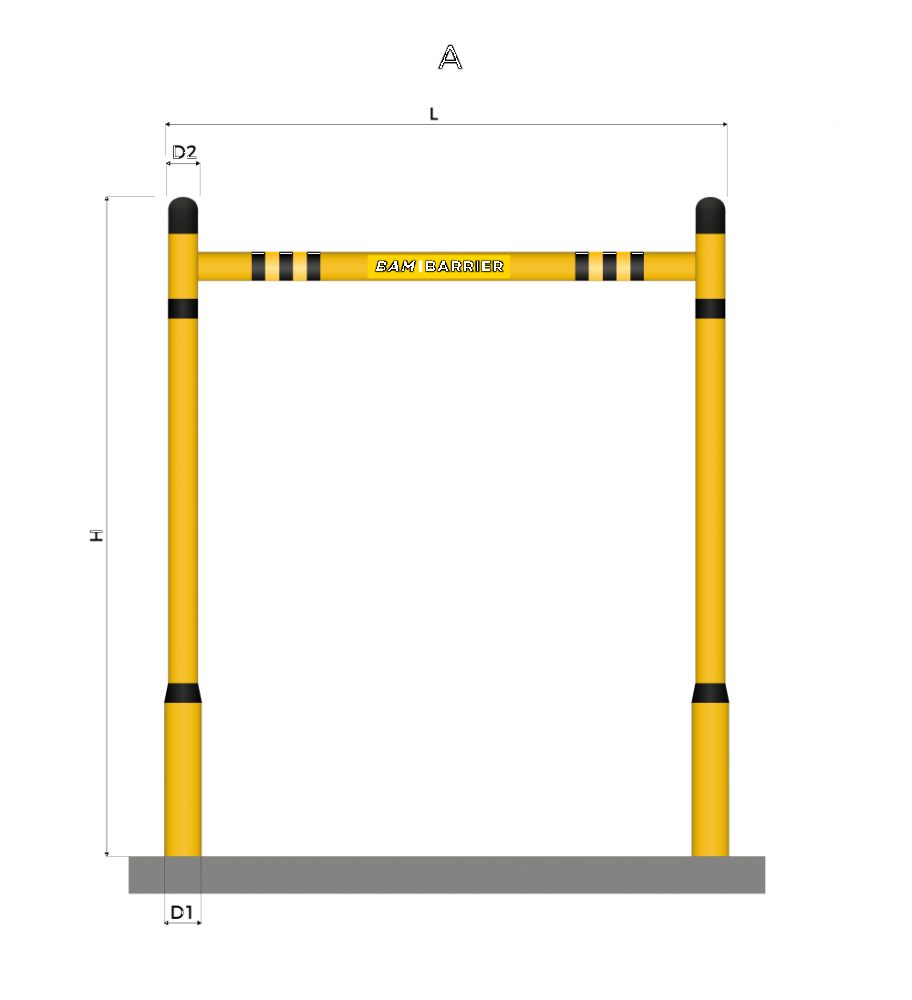

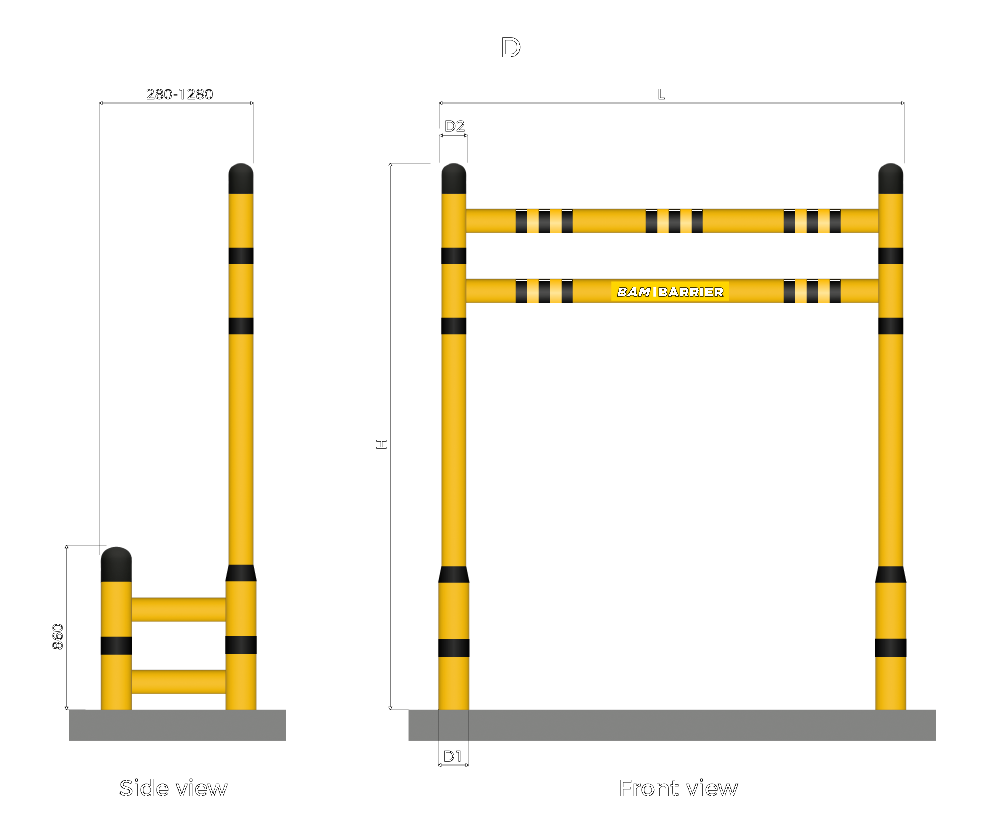

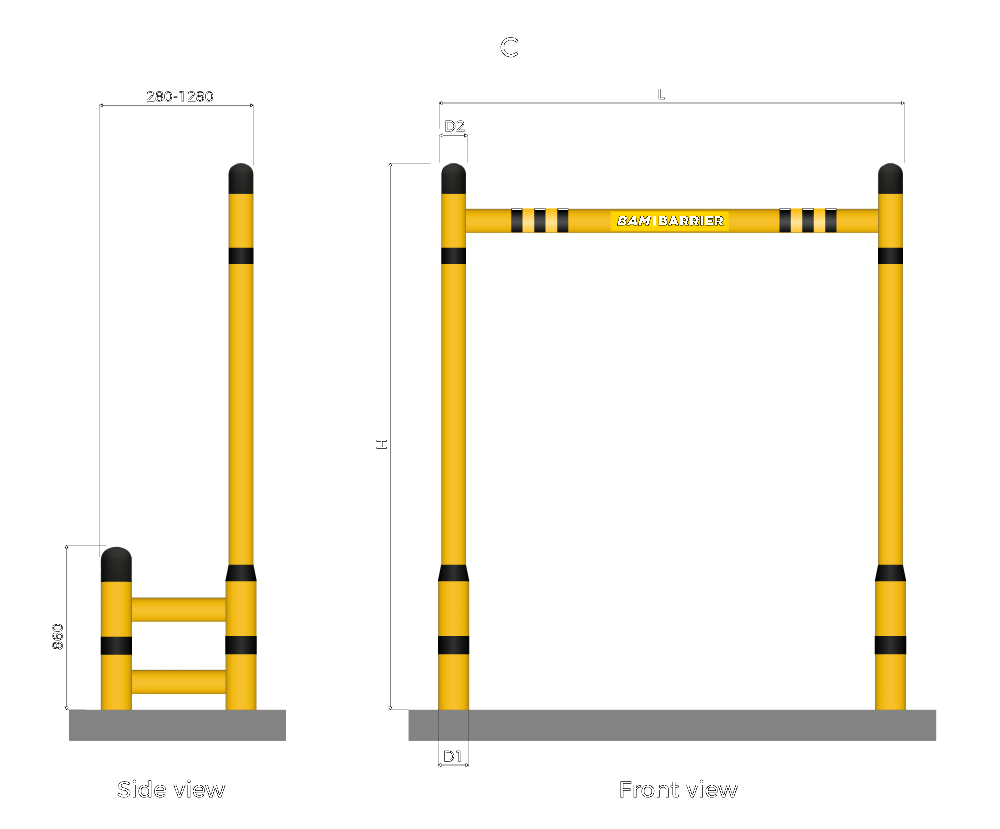

Rails
| Diameter mm |
Height H - mm |
Length L - mm |
Resistance Joules |
Total Floor Space mm |
IP Grade | Flame Extinguishing Rate |
|---|---|---|---|---|---|---|
| 55 | 110 | 2000-3000-4000 | 7 930 | 250 | 59 | UL94: HB |

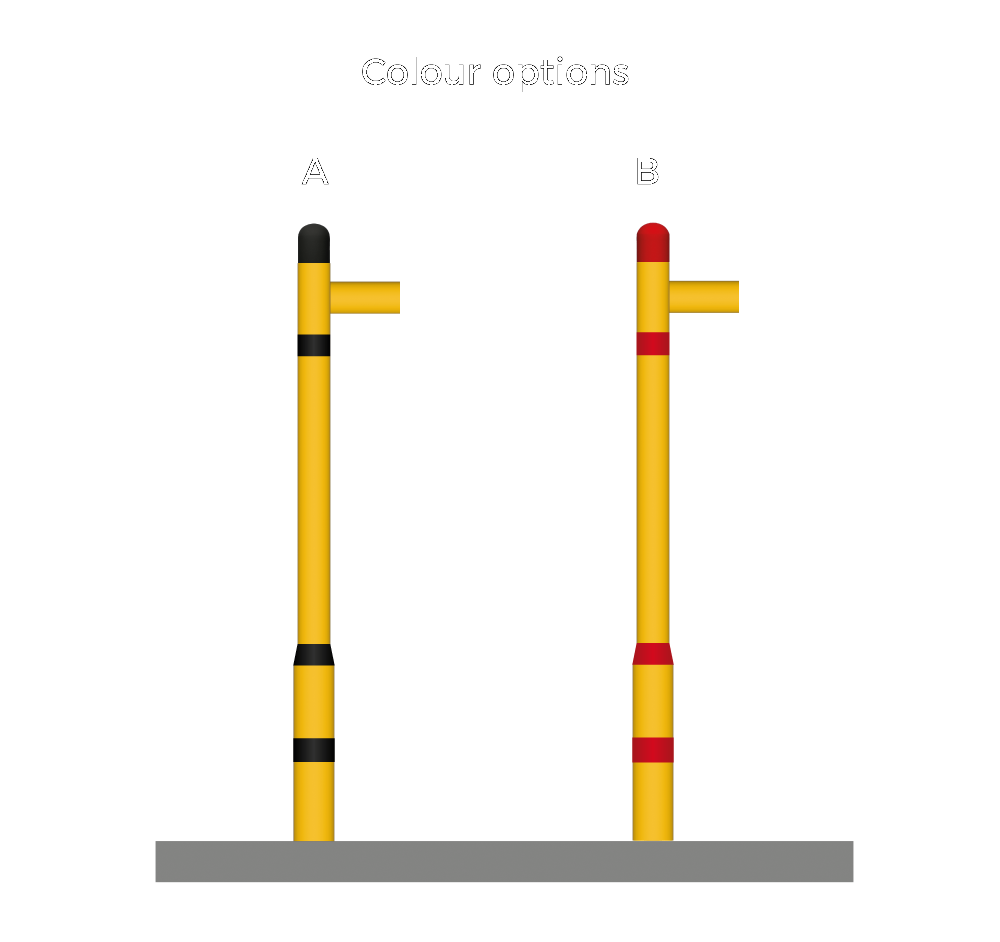

Customized solution and colours upon request
Impact Energy Calculator
(please fill in the details for calculation)
Impact energy result - Joules
Precisely What You Need
Call our Safety Consultant and receive a free, no-commitment Safety Assessment tailored to your needs.
Tel.: +39 347 46 74 056 / E-mail: info@bambarrier.com
Technology
FLEXAFE™
Cutting-Edge Polymer material, designed specifically to absorb high-level impacts in a very small space. It is food-safe, doesn't break or flake, and 100% recyclable.
FOOD SAFE
Resistance to Ultra-Violate Light DIN-EN-ISO 8777-8 Blue Scale
100% recyclable
Temperature Range -40° to +50°
ROOTLOCK®
World‘s most advanced and safe Anchorage System. It helps the floor to absorb violent and repeat vehicles impacts without damaging the floor.
Cutting-edge Anchorage System Design
Anti-Shrinkage Cement
Applications
Compliant Crash Testing
We test our products in compliance with the industry‘s World-class standards: PAS13:2017 and UNI 11886.
- We measure barriers resistance in „Joules“ according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h) - We make sure test only on real floor: armed concrete; we don‘t test on metal platforms.
- We make sure vehicle impact takes place at the worst-scenario angle: 90°.
Finally, Bambarrier product is certified compliant when:
- It stops the crashing vehicle safely without breaking itself and without breaking the floor.
- It can be hit repeatedly without getting loose and without breaking the floor.
- When after an impact, it occupies a very small space on the floor.
Crash tests - Bambarrier Handrail
Crash tests - Bambarrier Height Restriction Barrier
Certified Anchorage System Rootlock® M30
WANT TO KNOW MORE?
Request for your free quotation
