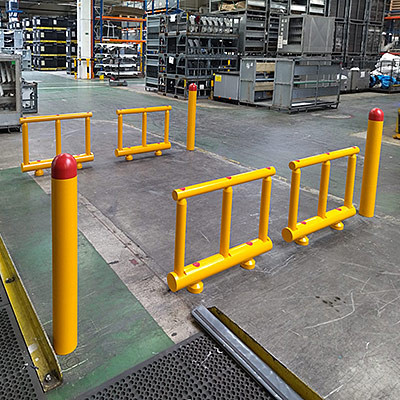

Double Impact Safety Guardrails

Double Impact Safety Guardrails - High represent the highest level of protection for critical areas of your operation. Thanks to its increased height and double construction, it provides maximum safety for both equipment and personnel.

Main Advantages:

Protection for Pedestrians and Property – High construction protects not only equipment but also employees and visitors
Versatile Use – Suitable for protecting walls, rack ends, columns, machines, and risk zones
Extreme Durability – Technical polymer processed with extrusion technology ensures the best balance of flexibility and strength
Double Construction – Two parallel barriers provide increased impact energy absorption
Professional Solution – A key element for ensuring safety in industrial environments
Deformation zone – due to their design and durability, they take up minimal space

This barrier is ideal for high-risk collision areas where both property and personal safety need protection.

Double Impact Safety Guardrails protect

Technical Specs

Download Technical Specs in PDF

Diameter D - mm	Height H - mm	Length L - mm	Resistance Joules	Anchoring Pullout kN	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
70/70	450	500-1000-1500-2000	9 369	190	94	59	UL94: HB
70/70	750	500-1000-1500-2000	9 369	190	94	59	UL94: HB
70/70	1000	500-1000-1500-2000	9 369	190	94	59	UL94: HB
100/70	450	500-1000-1500-2000	19 360	190	140	59	UL94: HB
100/70	750	500-1000-1500-2000	19 360	190	140	59	UL94: HB
100/70	1000	500-1000-1500-2000	19 360	190	140	59	UL94: HB
120/70	450	500-1000-1500-2000	33 950	190	183	59	UL94: HB
120/70	750	500-1000-1500-2000	33 950	190	183	59	UL94: HB
120/70	1000	500-1000-1500-2000	33 950	190	183	59	UL94: HB

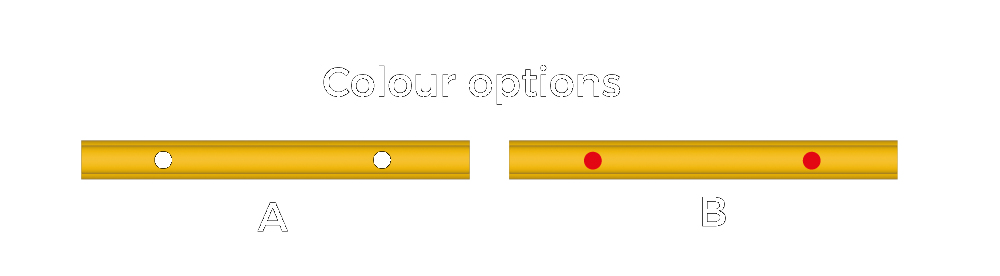

Customized solution and colours upon request

Impact Energy Calculator

Mass

Speed

Angle

(please fill in the details for calculation)

Impact energy result - Joules

10 000

12 500

20 000

25 000

30 000

37 500

40 000

50 000

..... Joules

Precisely What You Need

Call our Safety Consultant and receive a free, no-commitment Safety Assessment tailored to your needs.

Tel.: +39 347 46 74 056 / E-mail: info@bambarrier.com

Contact form

Technology

FLEXAFE™

Cutting-Edge Polymer material, designed specifically to absorb high-level impacts in a very small space. It is food-safe, doesn't break or flake, and 100% recyclable.

FOOD SAFE

Resistance to Ultra-Violate Light DIN-EN-ISO 8777-8 Blue Scale

100% recyclable

Temperature Range -40° to +50°

Why is it beneficial to use FLEXAFE?

ROOTLOCK®

World‘s most advanced and safe Anchorage System. It helps the floor to absorb violent and repeat vehicles impacts without damaging the floor.

Cutting-edge Anchorage System Design

Anti-Shrinkage Cement

What makes ROOTLOCK® special?

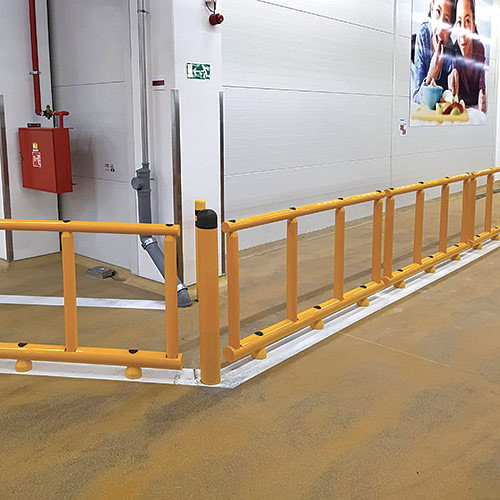

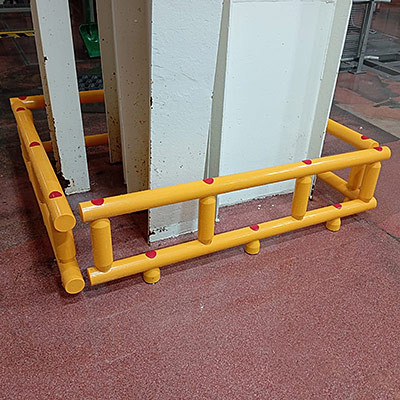

Applications

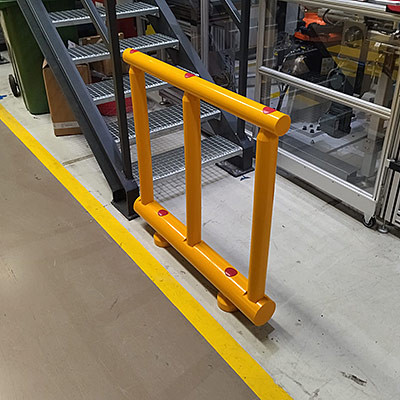

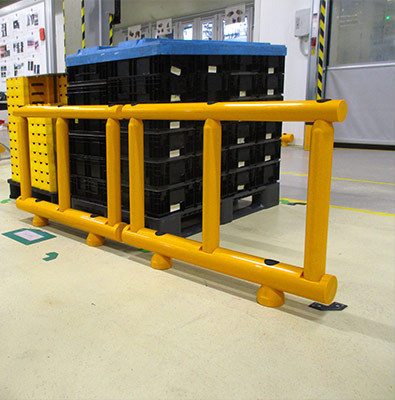

Good Protection

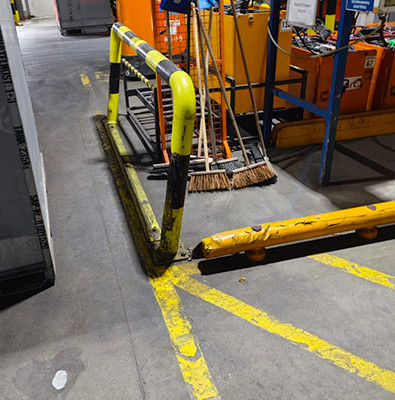

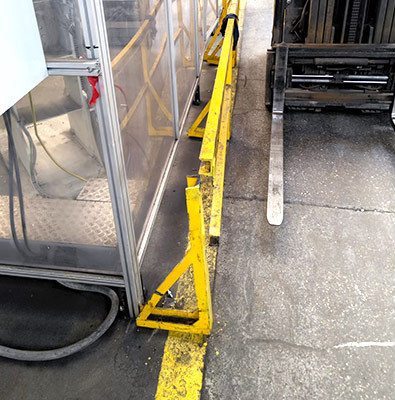

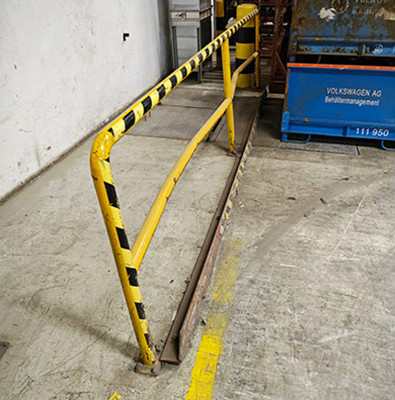

Bad Protection

Frequently Asked Questions

Compliant Crash Testing

We test our products in compliance with the industry‘s World-class standards: PAS13:2017 and UNI 11886.

We measure barriers resistance in „Joules“ according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h)
We make sure test only on real floor: armed concrete; we don‘t test on metal platforms.
We make sure vehicle impact takes place at the worst-scenario angle: 90°.

Finally, Bambarrier product is certified compliant when:

It stops the crashing vehicle safely without breaking itself and without breaking the floor.
It can be hit repeatedly without getting loose and without breaking the floor.
When after an impact, it occupies a very small space on the floor.
