High Impact Safety Guardrails MULTI PLUS

High Impact Safety Guardrails MULTI PLUS are the tallest and most advanced variant of the PLUS series, designed for maximum protection against tall vehicles up to 4140 mm in height. This comprehensive system significantly enhances safety by protecting against collisions with tall vehicles while also safeguarding buildings and infrastructure from damage.

Main Advantages:

Maximum height up to 4140 mm - The tallest variant of the series for protection against tall vehicles and heavy machinery
Extreme impact resistance - Impact posts withstand up to 23,950 joules with anchoring resistance of 580 kN
Modular system - Combines impact posts, horizontal railings, and safety barriers of various sizes
Traffic regulation - Effectively regulates traffic and prevents unauthorized entry
High visibility - Bright color ensures good visibility even in poor lighting conditions
Advanced technologies - Utilizes FLEXAFE™ polymer and ROOTLOCK® anchoring system
Certified quality - Tested according to PAS13:2017 and UNI 11886 standards
Floor protection - Ensures no floor damage upon impact thanks to the certified anchoring system

This railing is ideal for the most critical areas with heavy vehicle movement where absolute maximum protection is required.

High Impact Safety Guardrails MULTI PLUS protect

Technical Specs

Download Technical Specs in PDF

Bollards

Diameter D - mm	Height H - mm	Width L - mm	Resistance Joules	Anchoring Pullout kN	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
140/120	1270-4140	1000-2000-3000	23 950	580	450	59	UL94: HB

Rails

Diameter D - mm	Height H - mm	Length L - mm	Resistance Joules	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
55	110	1000-2000-3000	7 930	250	59	UL94: HB

Guards

Diameter D - mm	Height H - mm	Length L - mm	Resistance Joules	Anchoring Pullout kN	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
70	130	500-1000-1500-2000	9 369	190	94	59	UL94: HB
100	160	500-1000-1500-2000	19 360	190	140	59	UL94: HB
120	180	500-1000-1500-2000	33 950	190	183	59	UL94: HB

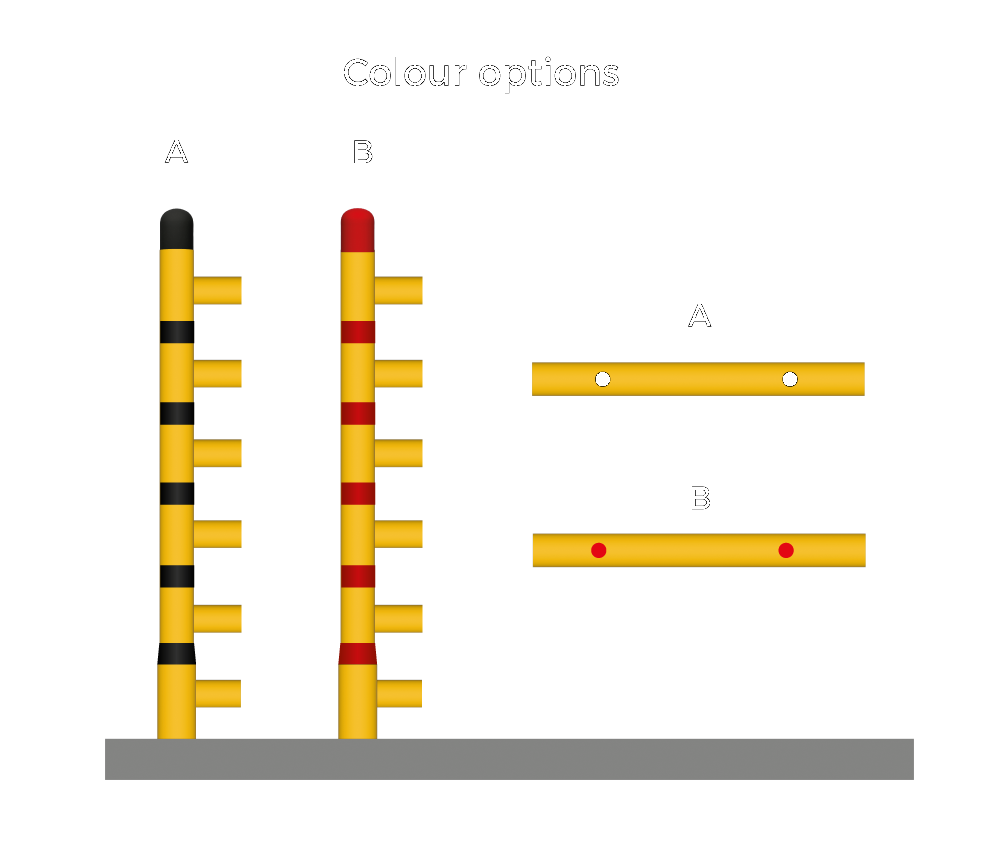

Customized solution and colours upon request

Impact Energy Calculator

Mass

Speed

Angle

(please fill in the details for calculation)

Impact energy result - Joules

10 000

12 500

20 000

25 000

30 000

37 500

40 000

50 000

..... Joules

Precisely What You Need

Call our Safety Consultant and receive a free, no-commitment Safety Assessment tailored to your needs.

Tel.: +39 347 46 74 056 / E-mail: info@bambarrier.com

Contact form

Technology

FLEXAFE™

Cutting-Edge Polymer material, designed specifically to absorb high-level impacts in a very small space. It is food-safe, doesn't break or flake, and 100% recyclable.

FOOD SAFE

Resistance to Ultra-Violate Light DIN-EN-ISO 8777-8 Blue Scale

100% recyclable

Temperature Range -40° to +50°

Why is it beneficial to use FLEXAFE?

ROOTLOCK®

World‘s most advanced and safe Anchorage System. It helps the floor to absorb violent and repeat vehicles impacts without damaging the floor.

Cutting-edge Anchorage System Design

Anti-Shrinkage Cement

What makes ROOTLOCK® special?

Applications

Frequently Asked Questions

Compliant Crash Testing

We test our products in compliance with the industry‘s World-class standards: PAS13:2017 and UNI 11886.

We measure barriers resistance in „Joules“ according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h)
We make sure test only on real floor: armed concrete; we don‘t test on metal platforms.
We make sure vehicle impact takes place at the worst-scenario angle: 90°.

Finally, Bambarrier product is certified compliant when:

It stops the crashing vehicle safely without breaking itself and without breaking the floor.
It can be hit repeatedly without getting loose and without breaking the floor.
When after an impact, it occupies a very small space on the floor.
