Impact Safety Guardrails TRIPLE PLUS
Impact Safety Guardrails TRIPLE PLUS are a taller variant of the PLUS series with a height of 1270 mm, following the PLUS (450 mm) and DOUBLE PLUS (860 mm) models. This railing provides maximum protection for the most demanding applications.
Main Advantages:
- Maximum Height 1270 mm - The tallest variant of the series for complete impact protection

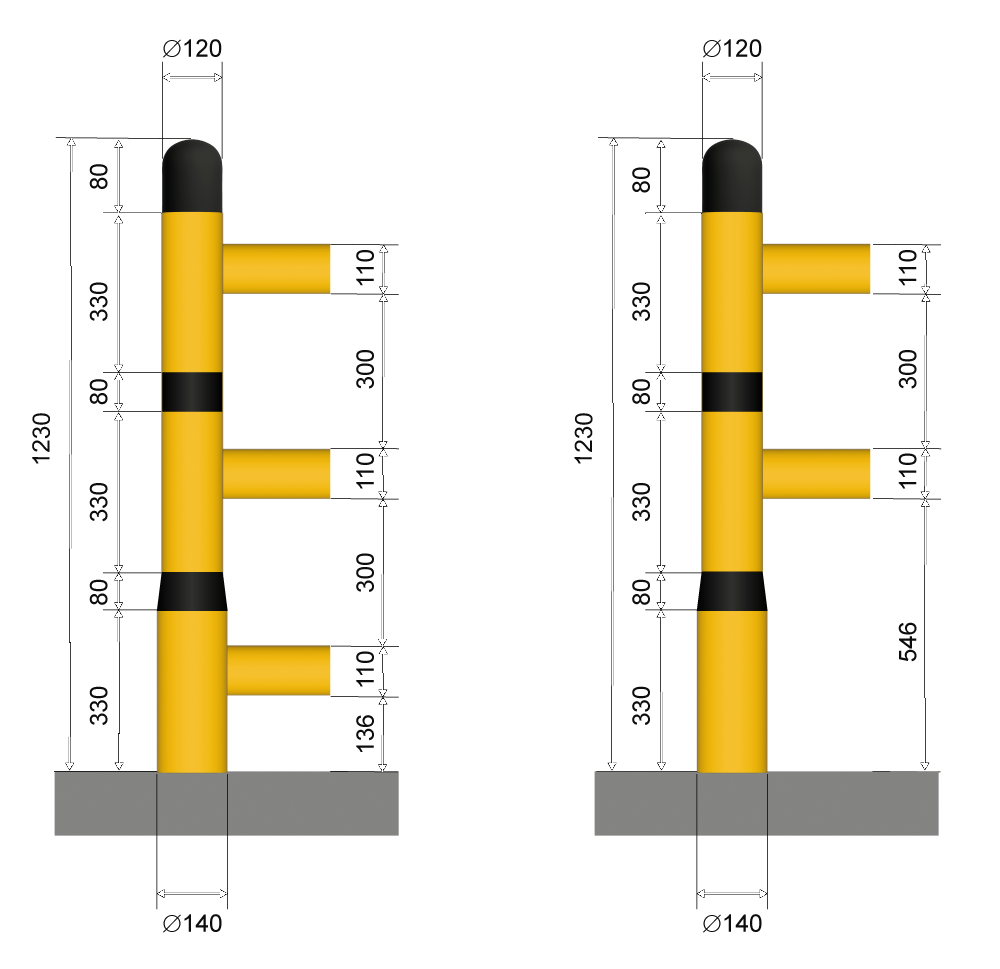

- Flexible Construction - Can be equipped with 2 or 3 horizontal braces according to specific requirements
- Combination with Impact Barriers - Often combined with other impact barriers for comprehensive protection

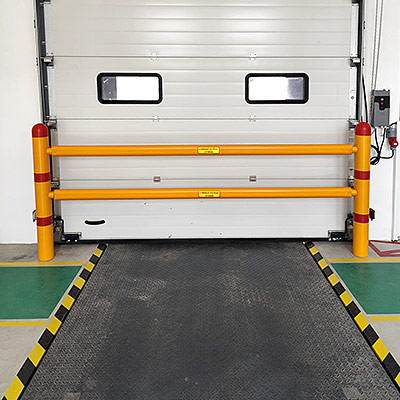

- Universal Use - Protects walls, rack ends, columns, machinery, loading ramps, and doors
- Separation of Handling Equipment - Effectively separates traffic and handling equipment in industrial environments
This railing is ideal for critical areas with high risk where maximum protection and flexible combination with other safety elements are needed.
Technical Specs
Download Technical Specs in PDF
Bollards
| Diameter D - mm |
Height H - mm |
Resistance Joules |
Anchoring Pullout kN |
Total Floor Space mm |
IP Grade | Flame Extinguishing Rate |
|---|---|---|---|---|---|---|
| 140/120 | 1270 | 23 950 | 580 | 450 | 59 | UL94: HB |
Rails
| Diameter D - mm |
Height H - mm |
Length L - mm |
Resistance Joules |
Total Floor Space mm |
IP Grade | Flame Extinguishing Rate |
|---|---|---|---|---|---|---|
| 55 | 110 | 1000-2000-3000 | 7 930 | 250 | 59 | UL94: HB |
Guards
| Diameter D - mm |
Height H - mm |
Length L - mm |
Resistance Joules |
Anchoring Pullout kN |
Total Floor Space mm |
IP Grade | Flame Extinguishing Rate |
|---|---|---|---|---|---|---|---|
| 70 | 130 | 500-1000-1500-2000 | 9 369 | 190 | 94 | 59 | UL94: HB |
| 100 | 160 | 500-1000-1500-2000 | 19 360 | 190 | 140 | 59 | UL94: HB |
| 120 | 180 | 500-1000-1500-2000 | 33 950 | 190 | 183 | 59 | UL94: HB |

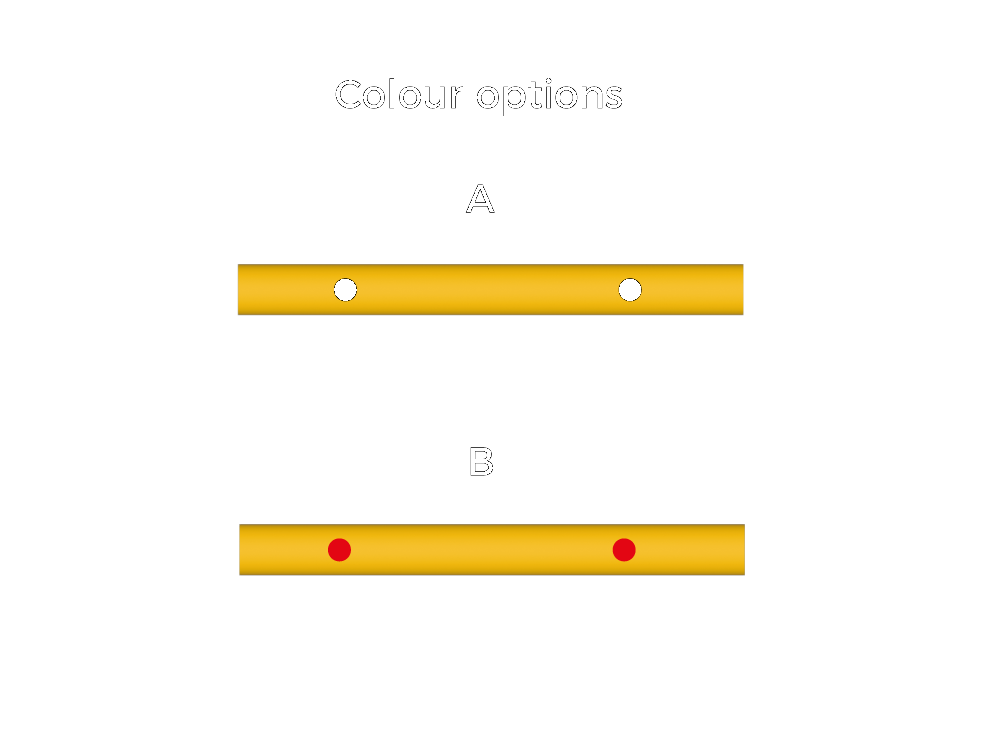

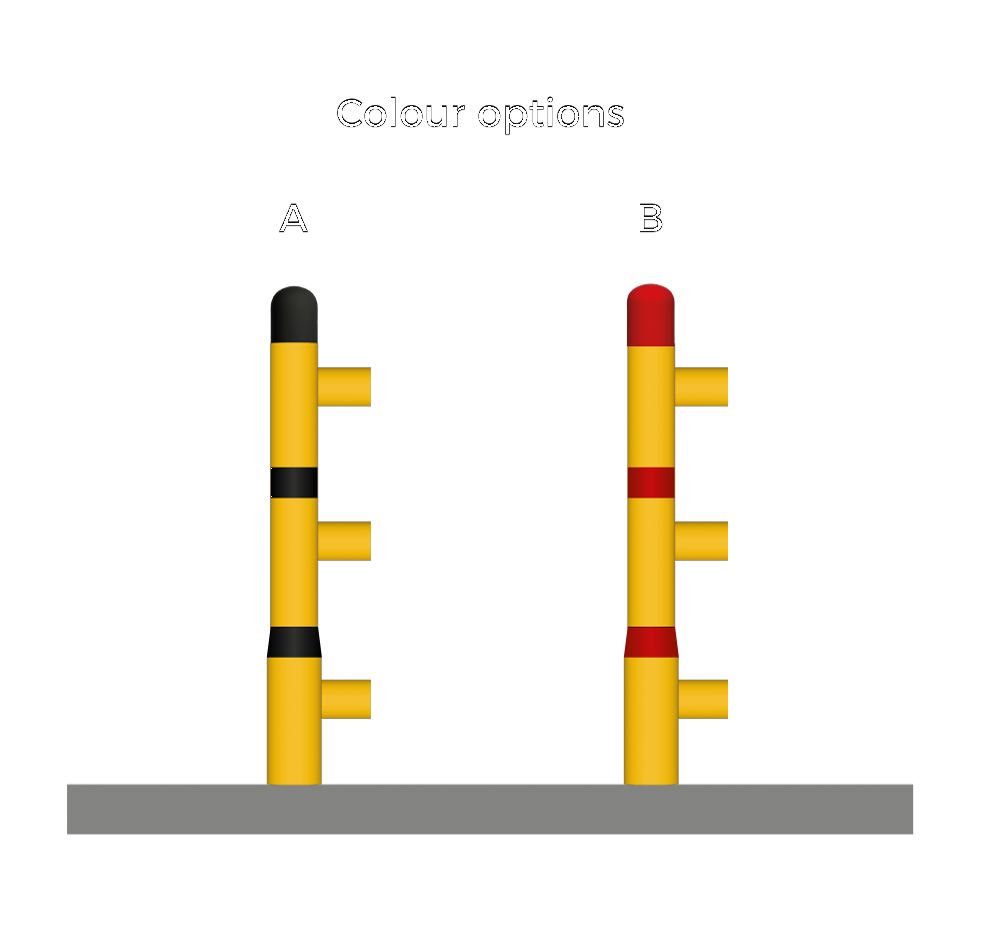

Customized solution and colours upon request
Impact Energy Calculator
(please fill in the details for calculation)
Impact energy result - Joules
Precisely What You Need
Call our Safety Consultant and receive a free, no-commitment Safety Assessment tailored to your needs.
Tel.: +39 347 46 74 056 / E-mail: info@bambarrier.com
Technology
FLEXAFE™
Cutting-Edge Polymer material, designed specifically to absorb high-level impacts in a very small space. It is food-safe, doesn't break or flake, and 100% recyclable.
FOOD SAFE
Resistance to Ultra-Violate Light DIN-EN-ISO 8777-8 Blue Scale
100% recyclable
Temperature Range -40° to +50°
ROOTLOCK®
World‘s most advanced and safe Anchorage System. It helps the floor to absorb violent and repeat vehicles impacts without damaging the floor.
Cutting-edge Anchorage System Design
Anti-Shrinkage Cement

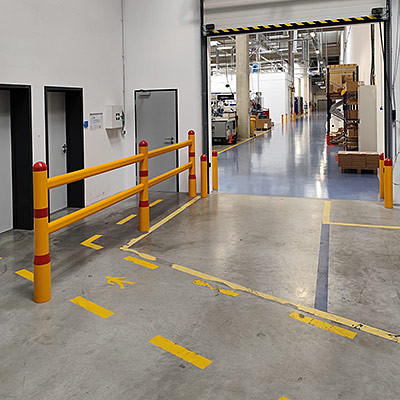

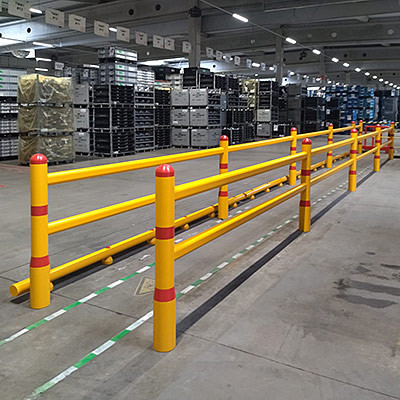

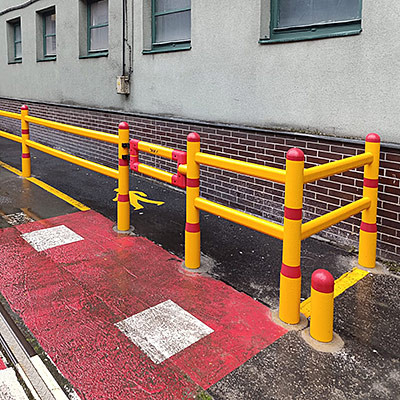

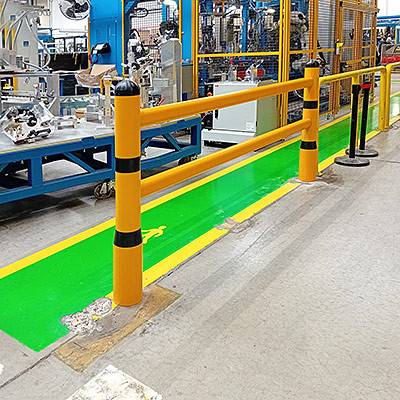

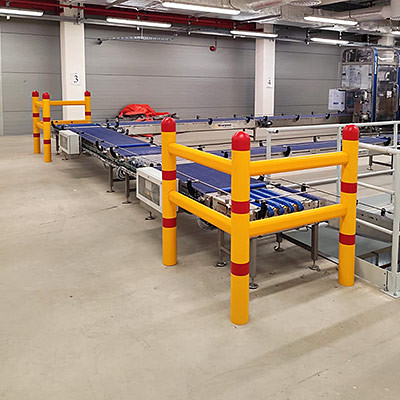

Applications

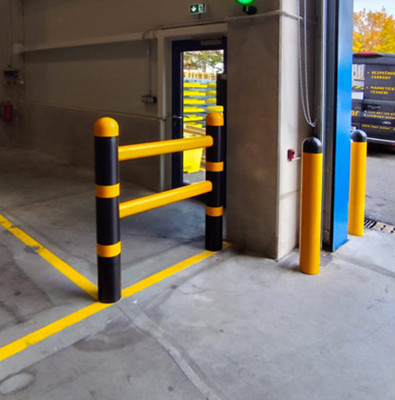

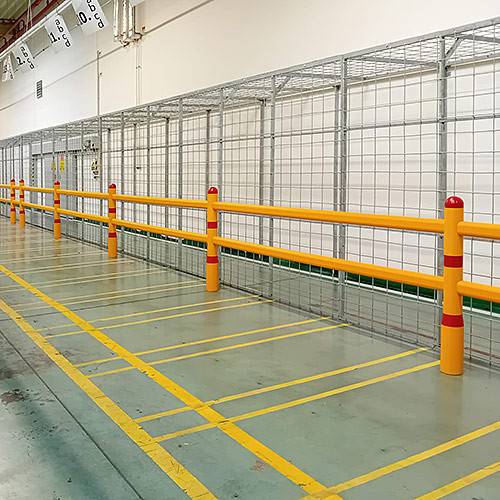

Good Protection

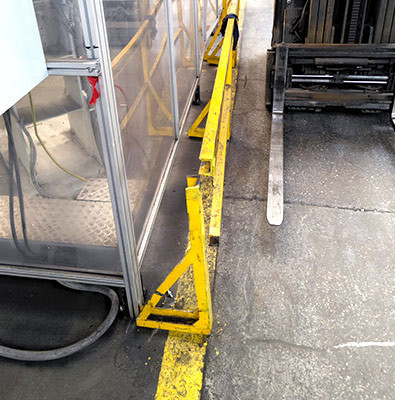

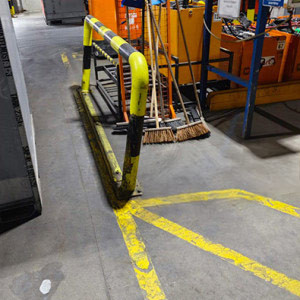

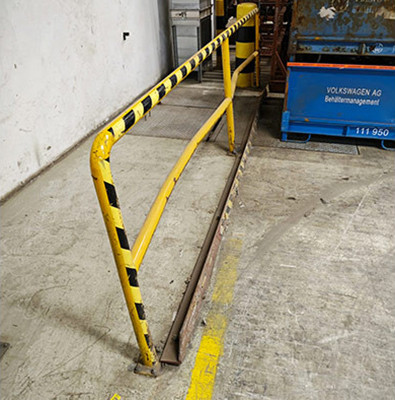

Bad Protection
Compliant Crash Testing
We test our products in compliance with the industry‘s World-class standards: PAS13:2017 and UNI 11886.
- We measure barriers resistance in „Joules“ according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h) - We make sure test only on real floor: armed concrete; we don‘t test on metal platforms.
- We make sure vehicle impact takes place at the worst-scenario angle: 90°.
Finally, Bambarrier product is certified compliant when:
- It stops the crashing vehicle safely without breaking itself and without breaking the floor.
- It can be hit repeatedly without getting loose and without breaking the floor.
- When after an impact, it occupies a very small space on the floor.
Crash tests - Bambarrier Impact Safety Guardrails TRIPLE PLUS
Impact safety guardrails with removable rails
Certified Anchorage System Rootlock® M30
