Impact Safety Guardrails
Impact Safety Guardrails are permanent protective elements designed primarily to protect straight lines and separate different operational zones. These system solutions provide reliable and long-term protection in industrial and warehouse spaces.
Main Advantages:
- Straight Line Protection - Designed to protect walls, rack ends, and other linear structures
- Permanent Fencing - The right choice wherever permanent fencing and separation are needed
- Traffic Separation - Effectively separates pedestrian paths from vehicle lanes and segregates specific areas
- System Solution - Modular design allows adaptation to various spaces and requirements
- Three-Sided Protection - Possibility of complete fencing of critical areas on three sides
- Technical Requirements - Meets established technical requirements for construction products
- Corrosion Protection - Steel structures with high-quality anti-corrosion treatment for long service life
- Accident Prevention - Part of a comprehensive accident prevention system in logistics centers
Safety railings represent an investment in long-term protection and operational organization with minimal maintenance requirements.
Technical Specs
Download Technical Specs in PDF

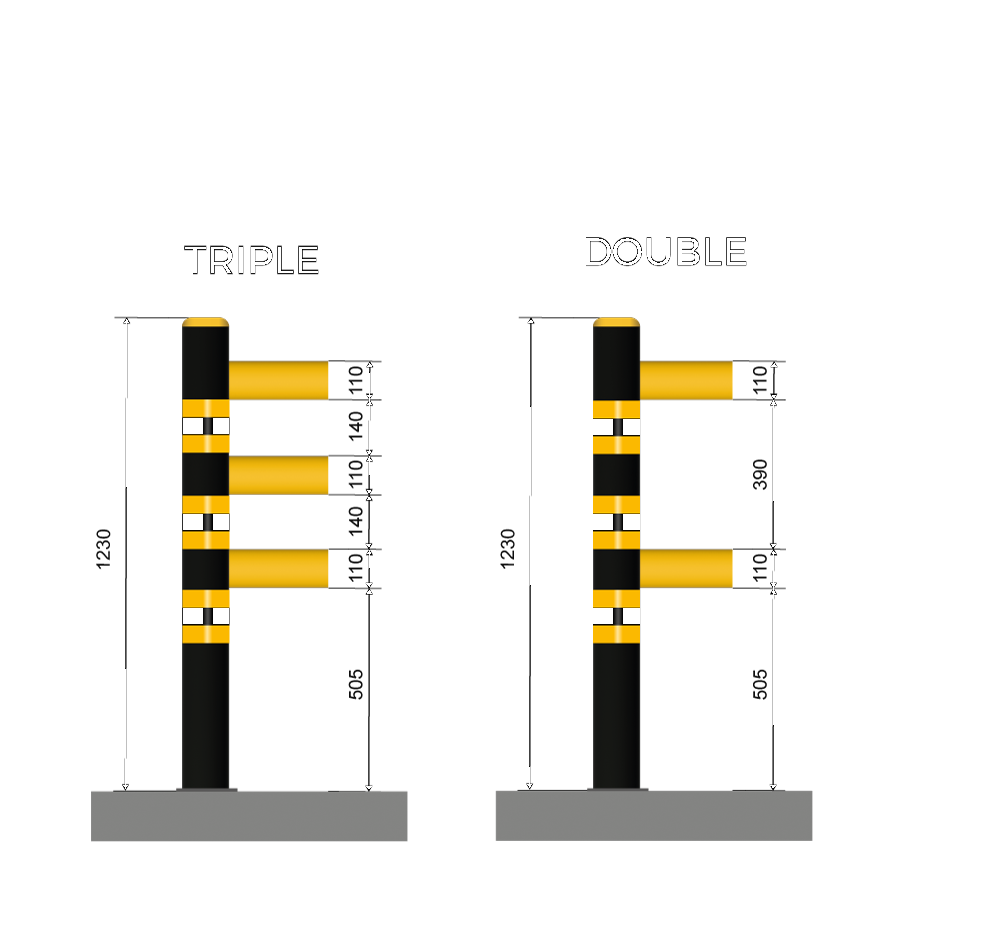

Bollards
| Diameter D - mm |
Height H - mm |
Resistance Joules |
Anchoring Pullout kN |
Total Floor Space mm |
IP Grade | Flame Extinguishing Rate |
|---|---|---|---|---|---|---|
| 125 | 1230 | 8 750 | 10,5 | 205 | 59 | UL94: HB |

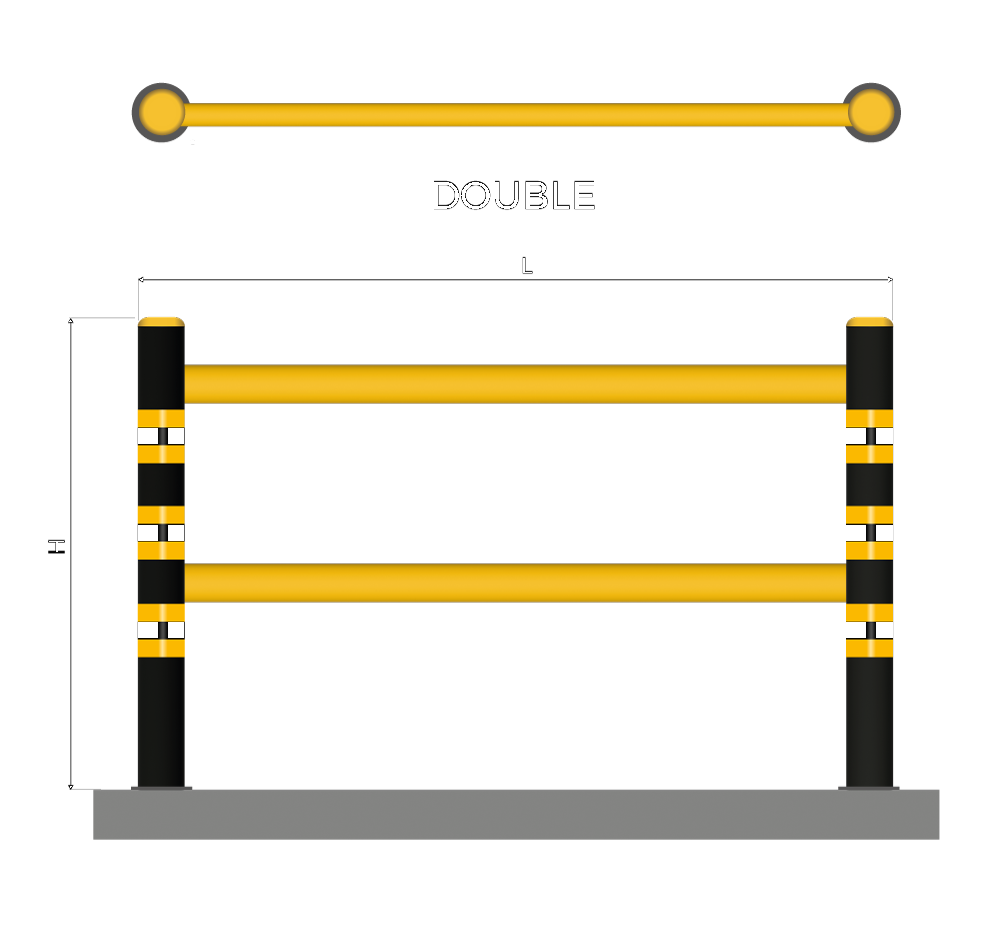

Rails
| Diameter D - mm |
Height H - mm |
Length L - mm |
Resistance Joules |
Total Floor Space mm |
IP Grade | Flame Extinguishing Rate |
|---|---|---|---|---|---|---|
| 55 | 110 | 1000-2000-3000 | 7 930 | 250 | 59 | UL94: HB |
Guards
| Diameter D - mm |
Height H - mm |
Length L - mm |
Resistance Joules |
Anchoring Pullout kN |
Total Floor Space mm |
IP Grade | Flame Extinguishing Rate |
|---|---|---|---|---|---|---|---|
| 70 | 130 | 500-1000-1500-2000 | 9 369 | 190 | 94 | 59 | UL94: HB |
| 100 | 160 | 500-1000-1500-2000 | 19 360 | 190 | 140 | 59 | UL94: HB |
| 120 | 180 | 500-1000-1500-2000 | 33 950 | 190 | 183 | 59 | UL94: HB |

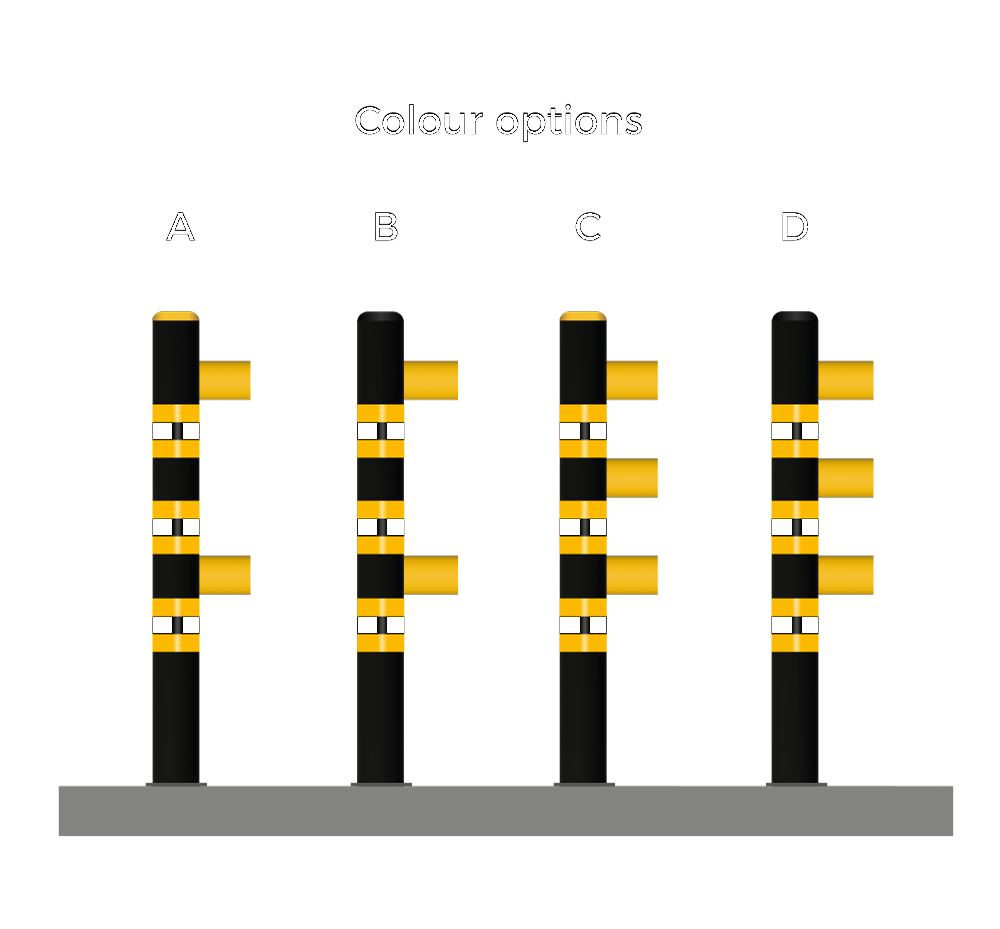

Customized solution and colours upon request
Impact Energy Calculator
(please fill in the details for calculation)
Impact energy result - Joules
Precisely What You Need
Call our Safety Consultant and receive a free, no-commitment Safety Assessment tailored to your needs.
Tel.: +39 347 46 74 056 / E-mail: info@bambarrier.com
Technology
FLEXAFE™
Cutting-Edge Polymer material, designed specifically to absorb high-level impacts in a very small space. It is food-safe, doesn't break or flake, and 100% recyclable.
FOOD SAFE
Resistance to Ultra-Violate Light DIN-EN-ISO 8777-8 Blue Scale
100% recyclable
Temperature Range -40° to +50°
Applications
Compliant Crash Testing
We test our products in compliance with the industry‘s World-class standards: PAS13:2017 and UNI 11886.
- We measure barriers resistance in „Joules“ according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h) - We make sure test only on real floor: armed concrete; we don‘t test on metal platforms.
- We make sure vehicle impact takes place at the worst-scenario angle: 90°.
Finally, Bambarrier product is certified compliant when:
- It stops the crashing vehicle safely without breaking itself and without breaking the floor.
- It can be hit repeatedly without getting loose and without breaking the floor.
- When after an impact, it occupies a very small space on the floor.
Crash tests - Bambarrier Impact Safety Guardrails
Impact safety guardrails with removable rails
Certified Anchorage System Rootlock® M30
