Alarm Bars

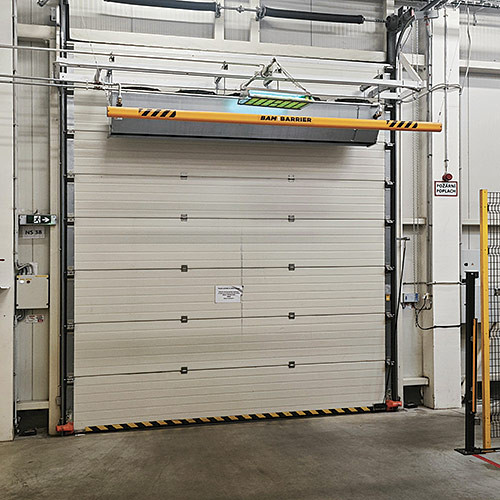

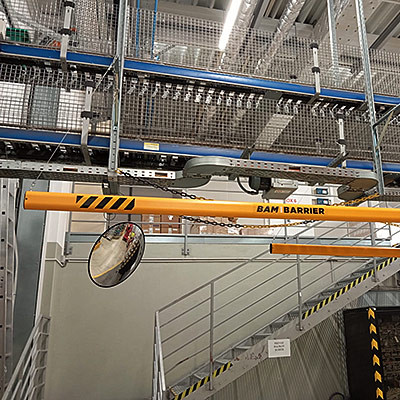

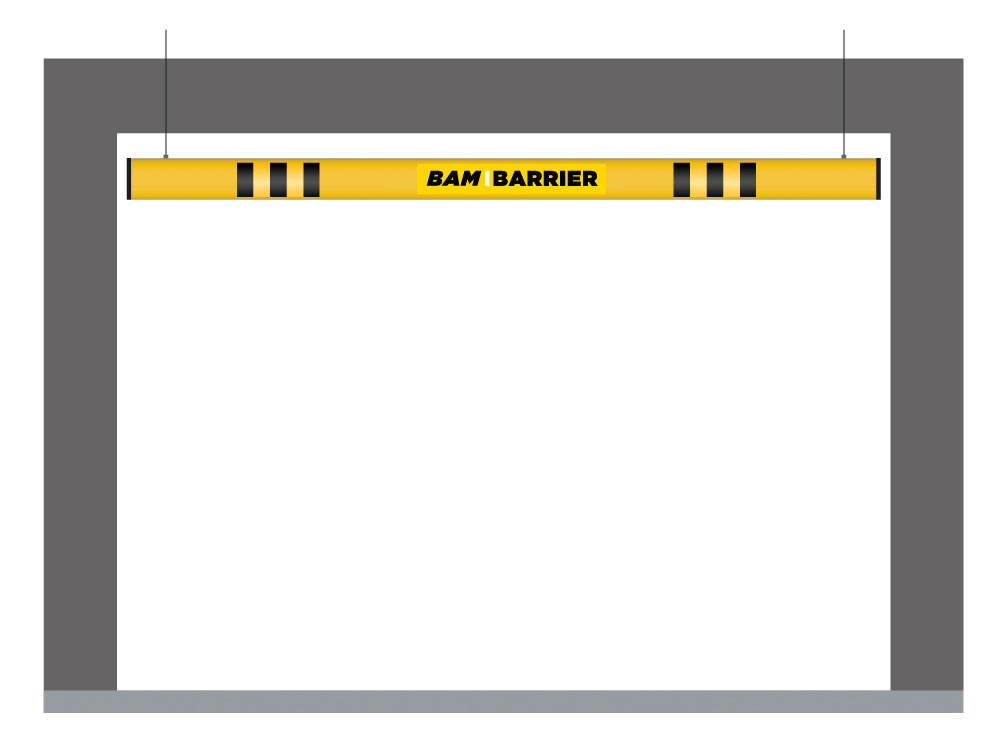

Alarm Bars provide protection for your property against accidental damage caused by vehicles. This overhead barrier offers audio and visual warnings that prevent damage before it occurs, helping to avoid vehicle collisions and gradually influencing driver behavior. It is easy to install and suitable for protecting door frames, loading ramps, infrastructure, and overhead passages.
Main Advantages:
- Active Prevention - Audio and visual warnings prevent collisions before they happen
- Influencing Driver Behavior - Gradually educates drivers and improves their attention in critical areas
- Infrastructure Protection - Protects door frames, loading ramps, overhead passages, and other overhead structures
- Easy Installation - Quick assembly without complex construction modifications
- Intelligent Signaling - Combines visual and audio elements for maximum effectiveness
- Universal Use - Suitable for various types of industrial and warehouse spaces
- Alarm Bar Mobile App for Android - The app offers advanced control features for safety barriers directly from your phone.
Download the Alarm Bar app on play.google.com
This advanced technology represents a proactive approach to safety, preventing accidents through early warnings rather than just passive protection.
Technical Specs
Download Technical Specs in PDF
Description |
Technical Data |
| Dimensions (mm) | 2 000-3 000 x 55 x 110 |
| Weight | 7 kg |
| Type of power supply | battery - standard optional - 12 V DC adapter |
| Working temperature | -10 °C – +50 °C |
| Lenght of alarm sound | default 7 sec (adjustable) |
| Noise of alarm sound | 80-120 dB (adjustable) |
| Configuralibity | Yes (Mobile App) |
|
Durability of 1 battery |
6 months /12 months |
| Colour | yellow/black |
| Alarm - battery discharged | Yes |
| Accessories | 2x steel cable/lenght 8 000 mm |
Impact Energy Calculator
(please fill in the details for calculation)
Impact energy result - Joules
Precisely What You Need
Call our Safety Consultant and receive a free, no-commitment Safety Assessment tailored to your needs.
Tel.: +39 347 46 74 056 / E-mail: info@bambarrier.com
Technology
FLEXAFE™
Cutting-Edge Polymer material, designed specifically to absorb high-level impacts in a very small space. It is food-safe, doesn't break or flake, and 100% recyclable.
FOOD SAFE
Resistance to Ultra-Violate Light DIN-EN-ISO 8777-8 Blue Scale
100% recyclable
Temperature Range -40° to +50°
Applications
Compliant Crash Testing
We test our products in compliance with the industry‘s World-class standards: PAS13:2017 and UNI 11886.
- We measure barriers resistance in „Joules“ according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h) - We make sure test only on real floor: armed concrete; we don‘t test on metal platforms.
- We make sure vehicle impact takes place at the worst-scenario angle: 90°.
Finally, Bambarrier product is certified compliant when:
- It stops the crashing vehicle safely without breaking itself and without breaking the floor.
- It can be hit repeatedly without getting loose and without breaking the floor.
- When after an impact, it occupies a very small space on the floor.
Crash tests - Bambarrier Alarm Bar
