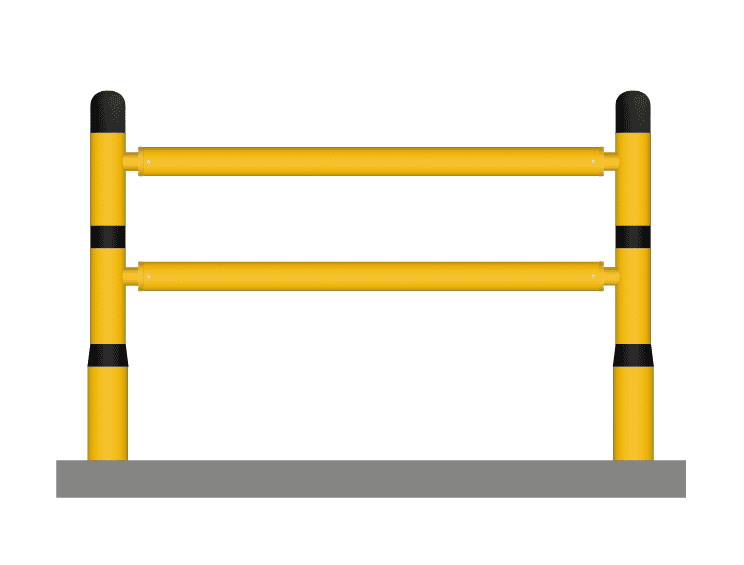

Impact Safety Guardrails with removable Rails

Rotary Lock In-Out System

Impact Safety Guardrail with Removable Rails provides maximum protection while allowing free passage after removing the rails.

Main Advantages:

Quick Removal of Rails - Rotary Lock In-Out System
Flexible Construction - Can be equipped with 2 or 3 horizontal rails according to specific requirements
Combination with Impact Barriers - Often combined with other impact barriers for comprehensive protection

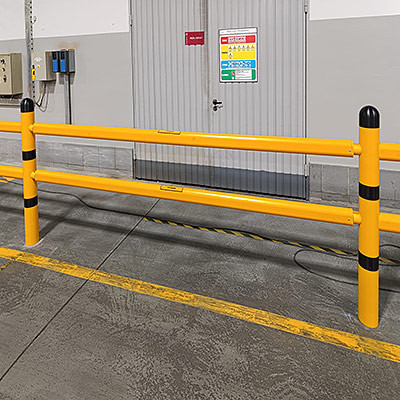

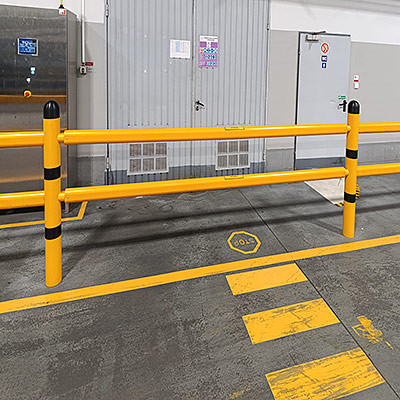

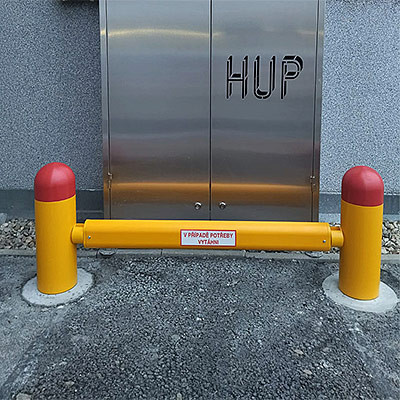

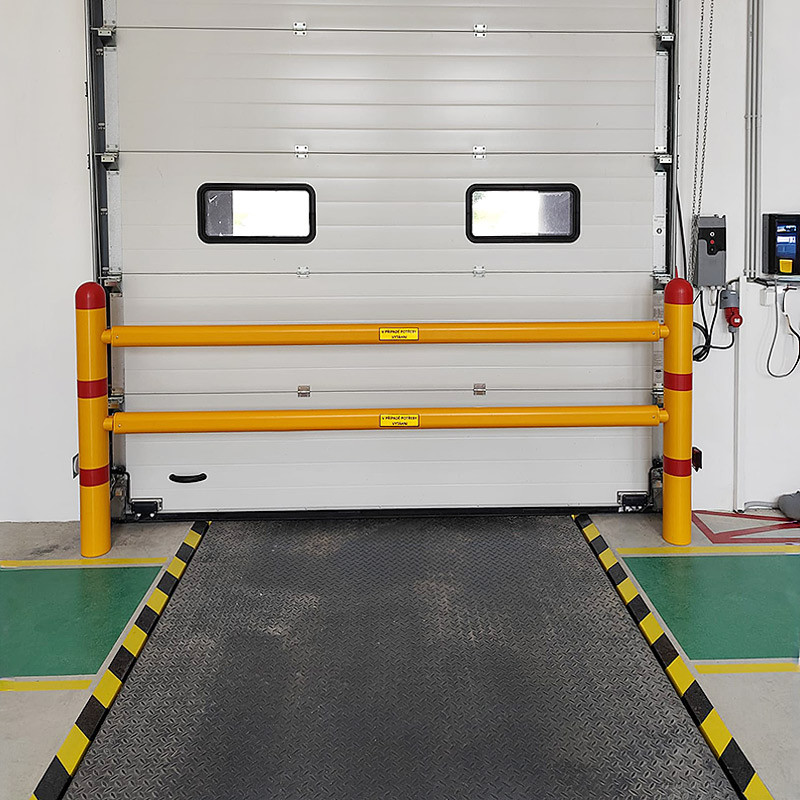

Universal Use - Protection for walls, rack ends, columns, machinery, loading docks, and doors
Separation of Handling Equipment - Effectively separates traffic and handling equipment in industrial environments

This guardrail is ideal for critical, high-risk areas where maximum protection and flexible combination with other safety elements are required.

Impact Safety Guardrails with removable Rails protect

Technical Specs

Download Technical Specs in PDF

Bollards

Diameter D - mm	Height H - mm	Resistance Joules	Anchoring Pullout kN	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
140/120	1270	23 950	580	450	59	UL94: HB

Rails

Number of rails	Diameter D - mm	Height H - mm	Length L - mm	Resistance Joules	Total Floor Space mm	IP Grade	Flame Extinguishing Rate

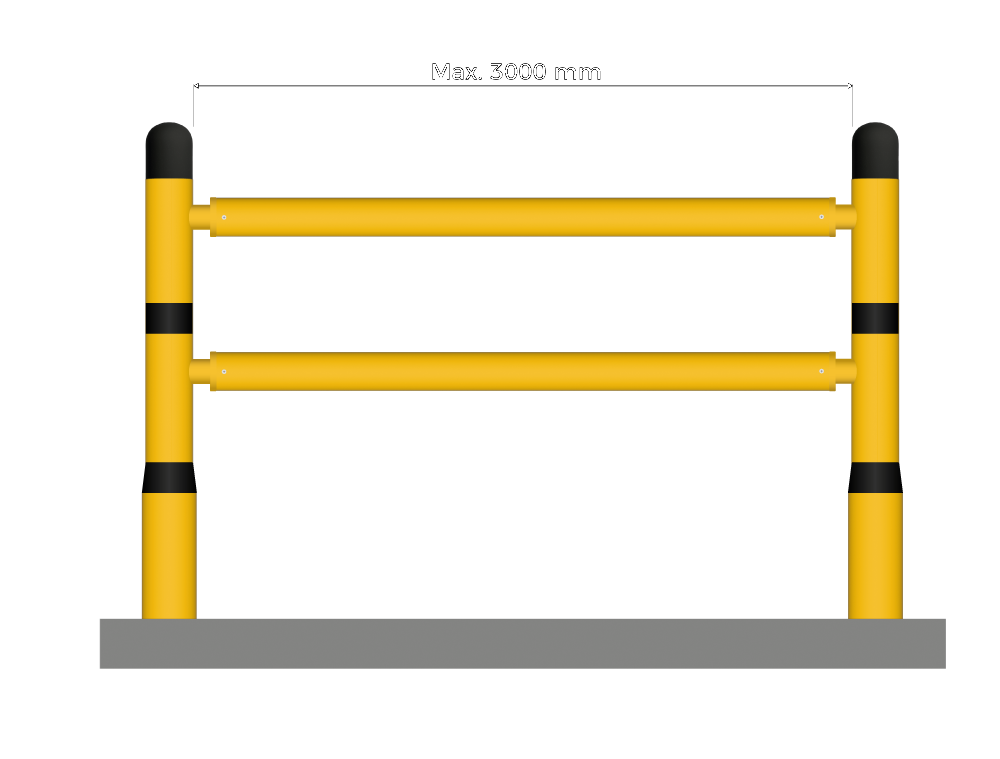

2	55	110	1000-2000-3000	7930	250	59	UL94: HB

Customized solution and colours upon request

Certified by TÜV SÜD.
Complies with BSI - PAS 13 and UNI 11886.

Impact Energy Calculator

Mass

Speed

Angle

(please fill in the details for calculation)

Impact energy result - Joules

10 000

12 500

20 000

25 000

30 000

37 500

40 000

50 000

..... Joules

Precisely What You Need

Call our Safety Consultant and receive a free, no-commitment Safety Assessment tailored to your needs.

Tel.: +39 347 46 74 056 / E-mail: info@bambarrier.com

Contact form

Technology

FLEXAFE™

Cutting-Edge Polymer material, designed specifically to absorb high-level impacts in a very small space. It is food-safe, doesn't break or flake, and 100% recyclable.

FOOD SAFE

Resistance to Ultra-Violate Light DIN-EN-ISO 8777-8 Blue Scale

100% recyclable

Temperature Range -40° to +50°

Why is it beneficial to use FLEXAFE?

ROOTLOCK®

World‘s most advanced and safe Anchorage System. It helps the floor to absorb violent and repeat vehicles impacts without damaging the floor.

Cutting-edge Anchorage System Design

Anti-Shrinkage Cement

Anchor hole of the impact bollards

Anchor hole of the impact guards

BAMBARRIER CRASH TEST LAB

What makes ROOTLOCK® special?

Applications

Frequently Asked Questions

Compliant Crash Testing

We test our products in compliance with the industry‘s World-class standards: PAS13:2017 and UNI 11886.

We measure barriers resistance in „Joules“ according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h)
We make sure test only on real floor: armed concrete; we don‘t test on metal platforms.
We make sure vehicle impact takes place at the worst-scenario angle: 90°.

Finally, Bambarrier product is certified compliant when:

It stops the crashing vehicle safely without breaking itself and without breaking the floor.
It can be hit repeatedly without getting loose and without breaking the floor.
When after an impact, it occupies a very small space on the floor.
