High Impact Safety Guards

High Impact Safety Guards are a specialized safety solution designed to protect both people and infrastructure in industrial environments. Thanks to its elevated construction, it provides protection at a raised level, making it ideal for specific applications.

Main Advantages:
  • Dual Protection – Simultaneously protects pedestrians and workers from vehicle collisions, as well as buildings and infrastructure from damage
  • Elevated Level of Protection – High-leg design allows installation at an elevated position for better visibility and effectiveness
  • Deformation zone – due to their design and durability, they take up minimal space
  • Hygienic Solution – Impact panels are hygienic, indestructible, washable, and fully recyclable
  • Versatile Use – Suitable for demarcating work areas, protecting production equipment and energy sources
  • Durable Construction – Extremely resistant to mechanical damage and repeated impacts
  • Easy Maintenance – Washable surface enables simple maintenance and cleaning

This product is ideal for areas where personal and property protection needs to be combined at a level above standard floor-mounted installations.

High Impact Safety Guards tags_title_protects
High Impact Safety Guards
High Impact Safety Guards
High Impact Safety Guards
High Impact Safety Guards
High Impact Safety Guards

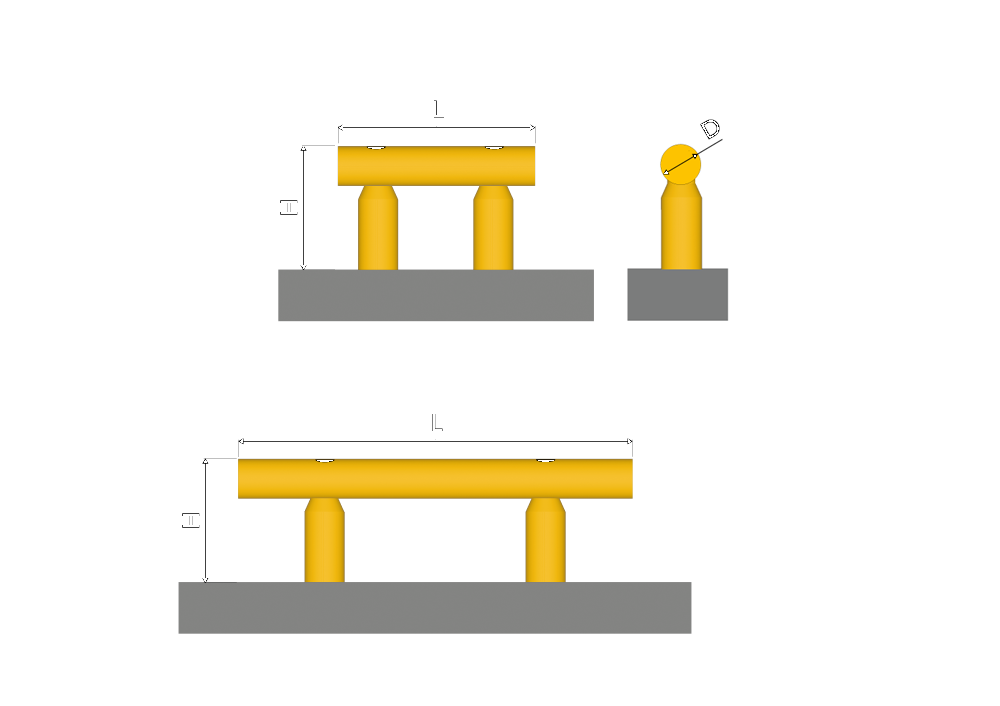

Technical Specs

Download PDF

Diameter
D - mm
Height
H - mm
Length
L - mm
Resistance
joules
Anchoring Pullout
kN
Total Floor Space
mm
IP Grade Flame Extinguishing Rate
70 225 500-1000-1500-2000 9 369 190 94 59 UL94: HB
70 270 500-1000-1500-2000 9 369 190 94 59 UL94: HB
100 250 500-1000-1500-2000 19 360 190 140 59 UL94: HB
100 300 500-1000-1500-2000 19 360 190 140 59 UL94: HB
120 295 500-1000-1500-2000 33 950 190 183 59 UL94: HB
120 365 500-1000-1500-2000 33 950 190 183 59 UL94: HB


 Customized solution and colours upon request

Impact Energy Calculator

Weight
Speed
Angle

(please fill in the details for calculation)

Impact energy result - Joules

0
10 000
12 500
20 000
25 000
30 000
37 500
40 000
50 000
..... joules
worker

Precisely What You Need

Call our Safety Consultant and receive a free, no-commitment Safety Assessment tailored to your needs.

Tel.: +39 347 46 74 056 / E-mail: info@bambarrier.com

Contact form
qr code for mobile number

Technology

FLEXAFE™

Cutting-Edge Polymer material, designed specifically to absorb high-level impacts in a very small space. It is food-safe, doesn't break or flake, and 100% recyclable.

FOOD SAFE

Resistance to Ultra-Violate Light DIN-EN-ISO 8777-8 Blue Scale

100% recyclable

Temperature Range -40° to +50°

Why is it beneficial to use FLEXAFE?

ROOTLOCK®

World‘s most advanced and safe Anchorage System. It helps the floor to absorb violent and repeat vehicles impacts without damaging the floor.

Cutting-edge Anchorage System Design

Anti-Shrinkage Cement

Anchor hole of the impact guards

What makes ROOTLOCK® special?

Applications

Good Protection

Bad Protection

Compliant Crash Testing


We test our products in compliance with the industry‘s World-class standards: PAS13:2017
and UNI 11886.

  • We measure barriers resistance in „Joules“ according to the following formula:
    Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h)
  • We make sure test only on real floor: armed concrete; we don‘t test on metal platforms.
  • We make sure vehicle impact takes place at the worst-scenario angle: 90°.

Finally, Bambarrier Bollard is certified compliant when:

  • It stops the crashing vehicle safely without breaking itself and without breaking the floor.
  • It can be hit repeatedly without getting loose and without breaking the floor.
  • When after an impact, it occupies a very small space on the floor.
